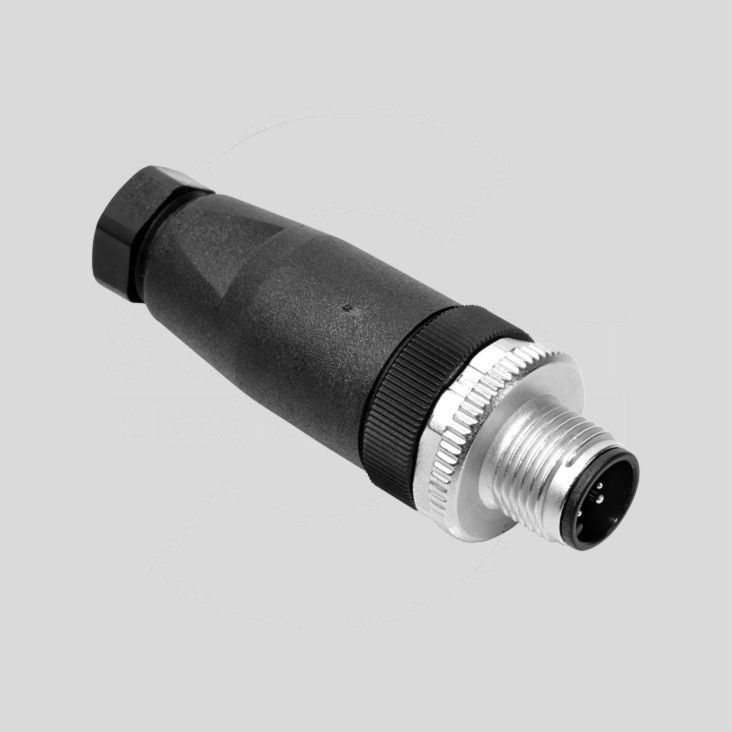

M12 Hanstik 4-Pole skrue Term.

GROUP:F4237Gruppe: F4237BINDER Connectors with Screw Locking Series: M12 A-Coded, 713 Cable Mounting, IP67 Features • Cable connectors with screw locking• Thread locking M12x1• Screw connection• Shield connection with shield ring/iris type spring• UL versions• Degree of protection IP67 Technical Specifications   Connector Locking System:ScrewTermination:ScrewWire Gauge, Max.:0,75mm2Cable Outlet, Max.:4...6mmDegree of Protection:IP67Mechanical Operating Life:>50 CyclesTemperature Range:-25...+85°CRated VoltageBIN99-_-_404:250VBIN99-_-_405:125VRated Current (40°C):4AContact Resistance, Max.:8mOhmMaterial of Contact:CuZn, OptaloyMaterial of Housing:PA ApprovalsTerms of DeliveryMinimum order quantity: 1 PKU = 1 piece

• Kategori: 222
