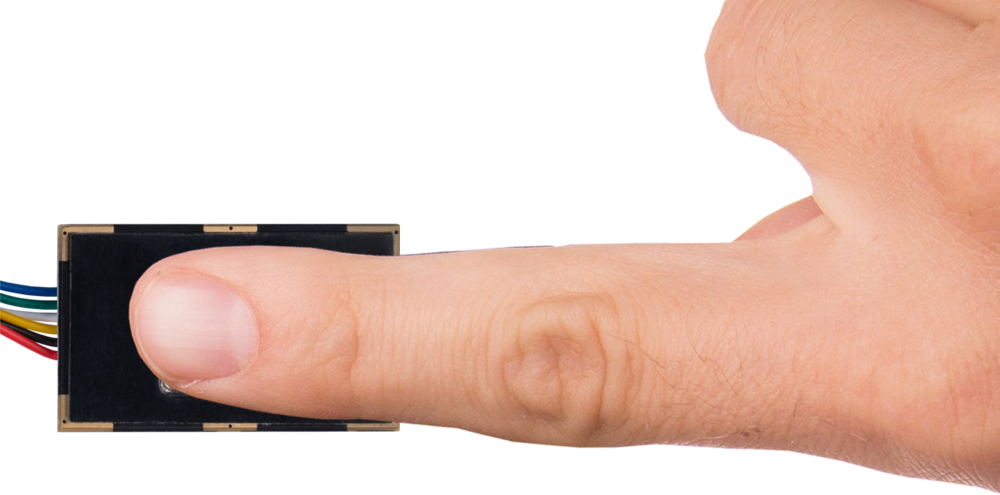

R301T Fingerprint sensor

Our R301T fingerprint sensor module is capable of image collection and algorithm calculation due to this integrated chip. Another remarkable function of the sensor is, that it can recognize the fingerprint in different conditions, for example humidity, light texture or changes of the skin. This offers a very wide range of possible applications to secure locks and doors among others. The chip can send data via UART, TTL serial and USB to the connected controller.ModelJP2000 SensorChip32 Bit ARM Cortex-M3Internal storage96 kB RAM, 1 MB FlashPower supply4.2 - 6.0 VPower consumptionTypical: 40 mAPeak: 50 mALogic level3.3 V - TTL LogicFingerprint storage capacity1700 PrintsMatching mode1:N Identification1:1 VerificationAdjustable security level1 - 5 levels ( default security level: 3 )False acceptance rate<0.001 % ( on security level 3 )False rejection rate<0.1 % ( on security level 3 )Response timePre-treatment: <0.45 sMatch: <1.5 sBaud rate support9600 - 921600UART CommunicationNo parity, Stop Bit: 1Operating temperature-10 to 50 °CDimensions42 x 19 x 8 mmItems ShippedCOM-FP-R301T, cableEAN4250236822037Article No.COM-FP-R301T
