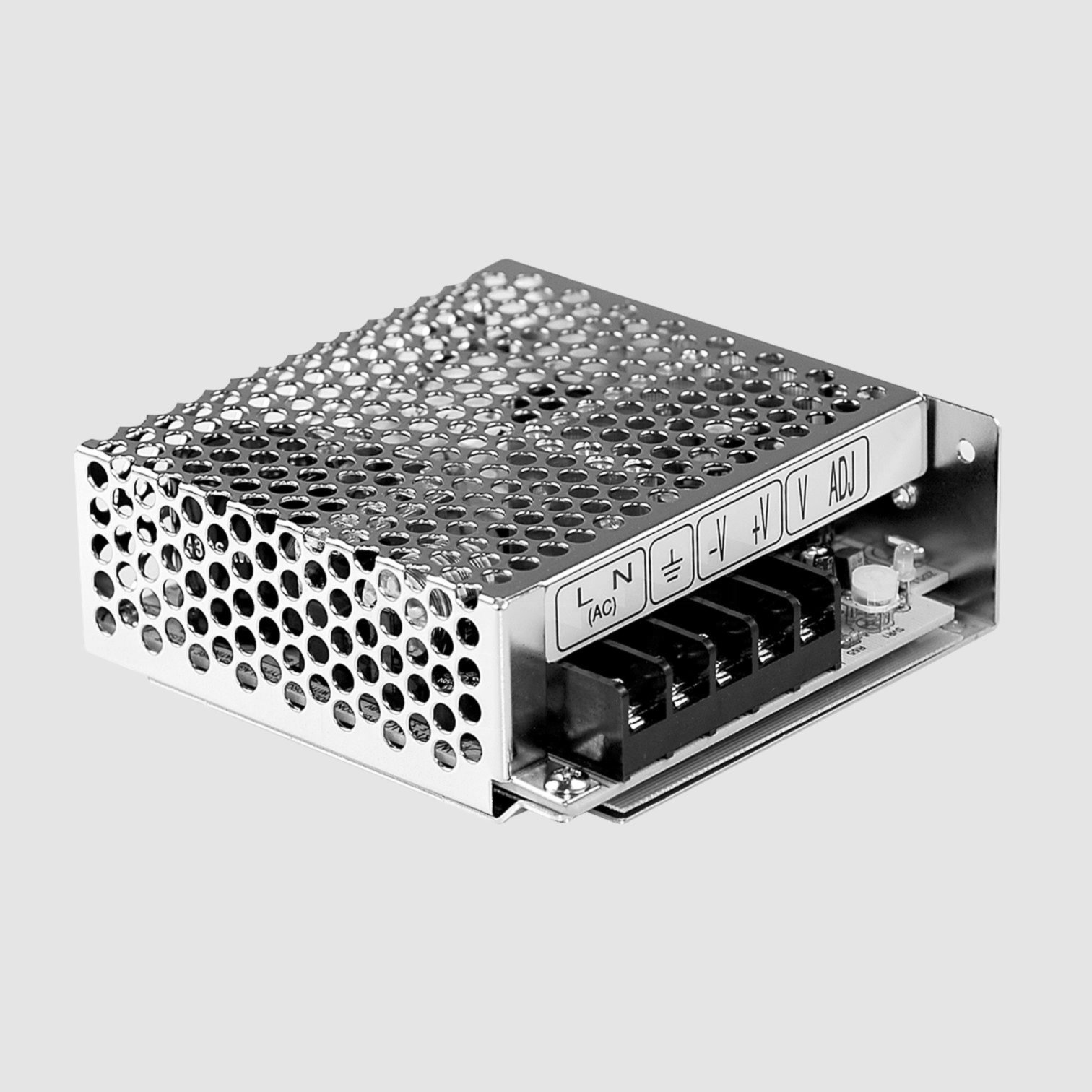

SPS Case 51W 15V/3,4A

Gruppe: L6132MEANWELL Switching Power SuppliesSeries: RS-50Case, Single OutputOutput: 33 to 52WFeatures• Enclosed case, screw terminals• Universal input• Overload protection, pulsing hiccup shutdown, auto recovery• Protections: short circuit/over load/over voltage• Long life 105°C electrolytic capacitorsTechnical SpecificationsInput Voltage:88...264V AC (47...63Hz)125...373V DCInput Inrush Current, Max.:33ALeakage Current, Max.:2mAOutput Voltage Adjustment:+10/-5%Over Load Protection:110...150%Withstand VoltageI/P-O/P:3000V ACI/P-FG:1500V ACO/P-FG:500V ACOperating Temperature:-25...+70°CWeight:410gI/P = Input, O/P = Output, FG = Frame GroundPart Nr.UAIAPADUAURNh [V][A][W][%][mVp-p][%]RS-50-3.33,30...103338078RS-50-550...105028083RS-50-12120...4,250,4112084,5RS-50-15150...3,451112086RS-50-24240...2,252,8112088RS-50-48480...1,152,8120089UA = Output Voltage, IA = Output Current Range, PA = Output Power, DUA = Output Voltage Tolerance, URN = Ripple & Noise, h = EfficiencyLabelling Terms of DeliveryMinimum order quantity: 1 PKU = 1 pieceManufacturer http://www.meanwell.com
