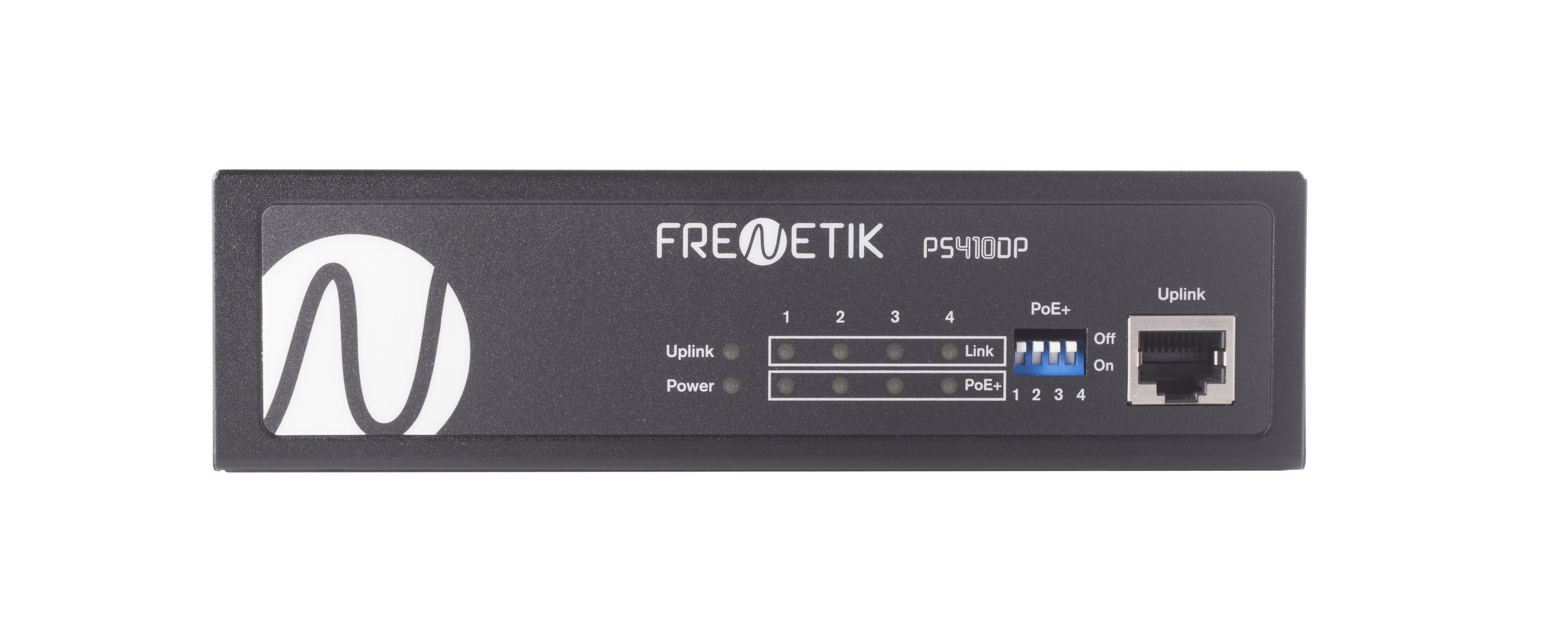

Distributor injector 4 outputs

Dante™ Distributor PoE+ 1 input and 4 outputs.Allows distribution of the Dante network and supply of PoE+ to 4 FRENETIK speakers simultaneously • PoE+ power supply disconnectable on each port • Maximum power permanently available on each port • Also allows distribution to any IP network protocol and supply to all other devices with PoE       • 3 year warranty Colour: Black   Technical data: Ref.: PS410DP Standards:           IEEE 802.3 10BaseT           IEEE 802.3u 100BaseTX           IEEE 802.3x Flow ControlIEEE 802.3at/af PoE           midspan PoE Non-PoE ports: 1 PoE+ ports: 4 PoE activation (On/Off): Dip-Switches Ethernet switch features:           MAC Address: 1           Buffer Memory: 48KB           Store and Forward           Auto MDIX           Auto Negotiation           Non-Blocking Packet filtering/transmission speeds:           100Mbps port - 148,800pps           10Mbps port - 14,880pps Network cables:           100BaseTx Cat. 5 UTP/STP           10BaseT Cat. 3, 4, 5 UTP/STP Standard PoE wiring: 4, 5, 7 ,8 LED indicators:           Per port: Activity / link with 10/100M, PoE ON/OFF (except Uplink)           For the device: Power Power:           Input: 100-240 VAC, 50~60 Hz           Outpouts: 56 VDC 2.14 A (120 W) PoE power on each port: 30 W Power consumption (excluding PoE): 5 Watts (Max) Dimensions: 44 x 160 x 122 mm Weight: 0.80 kg Operating temperature range: 0 to 40°C Storage temperature range: -20°C to 90°C Humidity: 10 to 90% (non-condensing))

• Mærke: FRENETIK
• Kategori: AGENTUR > Frenetik > Distributors & Injectors
