DC/DC-Conv 20-60V:+5V 500mA 2,5W

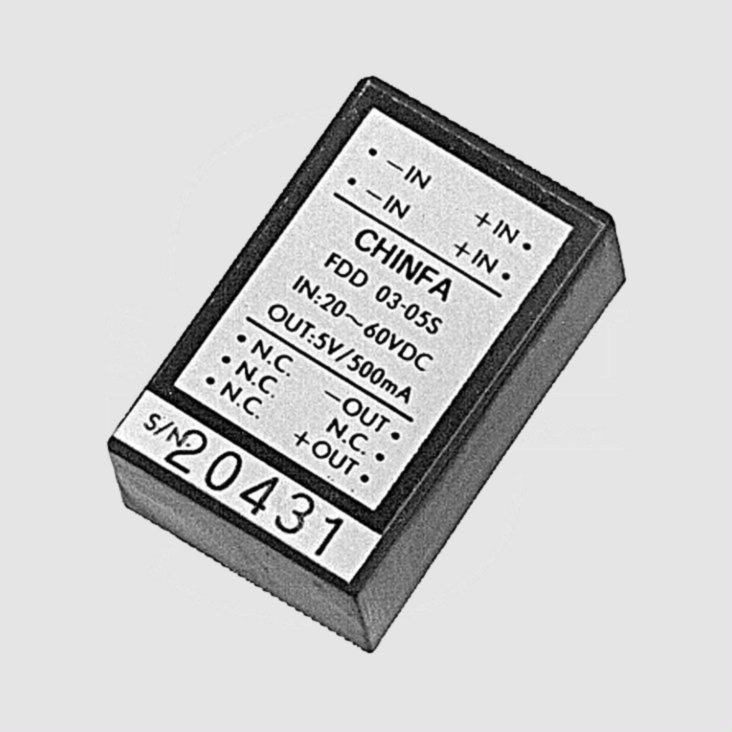

Gruppe: L8323CHINFA DC/DC Converter ModulesSeries: FDD03_SDIP/DIL24 Housing, Single OutputInput Voltage Ratio: 2:1 and 3:1Output: 2 to 3WFeatures• DIP/DIL24 housing• For direct PCB mounting• Wide input voltage range 3:1• DC decoupling of input and output• Input/output insulation 1500V• Regulated output voltage• Short-circuit proofTechnical SpecificationsInput Voltage:See TableWithstand Voltage:1500V DCOperating Temperature:-25...+71°CWeight:15gPart Nr.UEUAIAPAh [V][V][mA][W][%]FDD0305S19...185400263FDD0312S19...18122002,465FDD0315S19...18151502,265FDD0305S218...3655002,568FDD0312S218...3612250370FDD0305S20...6055002,568FDD0312S20...6012250370UE = Input Voltage Range, UA = Output Voltage, IA = Output Current, PA = Output Power, h = EfficiencyPin AssignmentPin 2, 3:-UINPin 9:NCPin 10, 15:NCPin 11:NCPin 14:+UOUTPin 16:-UOUTPin 22, 23:+UINNoteA built-in shunt diode and an external fuse is recommended as a reverse voltage protection (input). C1 = 4,7µF/100V; wiring is always recommended, C2 = 10µF, to decrease ripple and noise <100mV (Option)Terms of DeliveryMinimum order quantity: 1 PKU = 1 pieceManufacturerChinfahttp://www.chinfa.com
