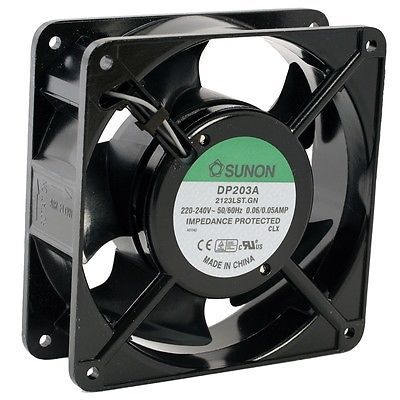

Fan 230V 120x38 B T 93m³/h 28dBA 14W

Gruppe: K6432SUNON AC Axial Fans120x120x38mmSeries: A, DP, SP, SFDesignMotor:Shaded-Pole Motor, Impedance ProtectedFrame:Aluminium Spray CastImpeller:Filled Thermoplastic PBT (UL94V-0)Connection Type:See Table BelowTechnical SpecificationsRated Voltage50Hz:220V60Hz:240VSF1212AD-BL (Bi-Volt, 50/60Hz):115V(50/60Hz):220VSP101A1123HST (50/60Hz):115VOperating Voltage:185...245VSF1212AD-BL (115V):85...125VDielectric Strength at 65% r. F.:1500V AC for 1 Min.Insulation Resistance at 500V DC:>500MWStorage Temperature:-40...+70°COperating Temperature:-10...+70°CPart Nr.BearingTerminalPAirflowNoiseIPelSpeed TypeType [m3/h][dBA][A][W][U/min]A2123HSTST161,36440,14232700A2123HSLSL161,36440,14232700A2123HBTBT164,76450,14232700A2123HBLBL164,76450,14232700DP200A2123XSTST161,40440,14222700SP100A1123XSTST161,40440,26222700DP200A2123XBTBT164,76450,14222850DP200A2123XSLSL161,37440,14222700DP200A2123XBLBL164,76450,14222850DP201A2123HSTST144,38430,125202550DP201A2123HBTBT147,78450,125202750DP203A2123LSTST118,9360,06112000DP203A2123LBTA24BT93,42280,07141700SF1212AD-BLBL161,37440,1319,53000(115V) L161,37440,2721,52600SP101A1123HSTST144,38430,21202550All Specs Valid for 230V, 50Hz; PAirflow = Airflow ±10%, Pel = Rated Power and Current Tolerance ±10%, S = Sleeve Bearing, B = Ball Bearing, T = Terminal (2,8x0,5mm), L = Lead Wires, AWG24, Tinned NoteThe frame is grounded by a M4 screw, drilled frames available.The fans are connected with an integrated terminal by a fan cable, see product group K9512.The SF1212AD-BL fans are connected according to connection diagram.General information about the A, MA, SF, SP, DP series can be found here.Labelling ApprovalsPart Nr. A2123HSTxxx A2123HSLxxx A2123HBTxxx A2123HBLxxx DP200A2123XSTxxxxSP100A1123XSTx xxDP200A2123XBTxxxxDP200A2123XSLxxxxDP200A2123XBLxxxxDP201A2123HSTxxxxDP201A2123HBTxxxxDP203A2123LSTx xxDP203A2123LBTA24x xxSF1212AD-BL SP101A1123HSTx xxTerms of DeliveryMinimum order quantity: 1 PKU = 1 pieceManufacturer http://www.sunon.com.tw
