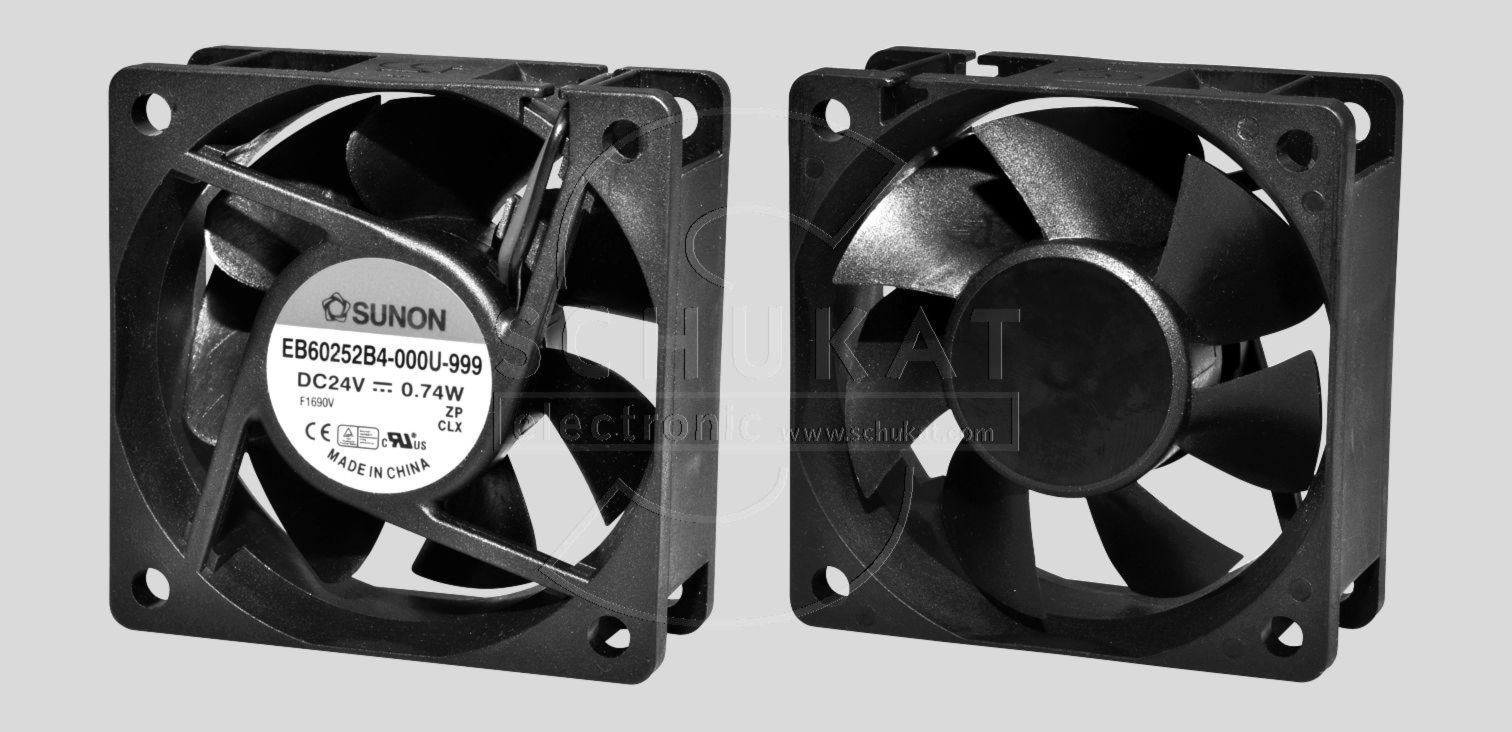

Fan 24V 60x25 B 23,49m³/h 20dBA

Manufacturer SUNON   Type of fan DC   Kind of fan axial   Supply voltage 24V DC   Operating voltage 12...27.6V   Fan dimensions 60x60x25mm   Power consumption 720mW   Current rating 30mA   Fan efficiency 23.49m3/h   Noise level 20dBA   Kind of Bearing ball bearing   Rotational rate/speed 3000 (±15%)rpm   Current and power consumption tolerance ±15%   Min. insulation resistance 10MΩ   Impeller material thermoplastic   Enclosure material thermoplastic   Insulation class A   Leads 2 leads   Operating temperature -10...70°C   Cable length 300mm   Flammability rating UL94V-0   Additional functions Autorestart   Fan motor brushless DC   Static pressure 2.03mm H2O   Weight 52g   Storage temperature -40...80°C   Wire size 26AWG  Additional informationGross weight: 52 g
