Analog Digital Converter

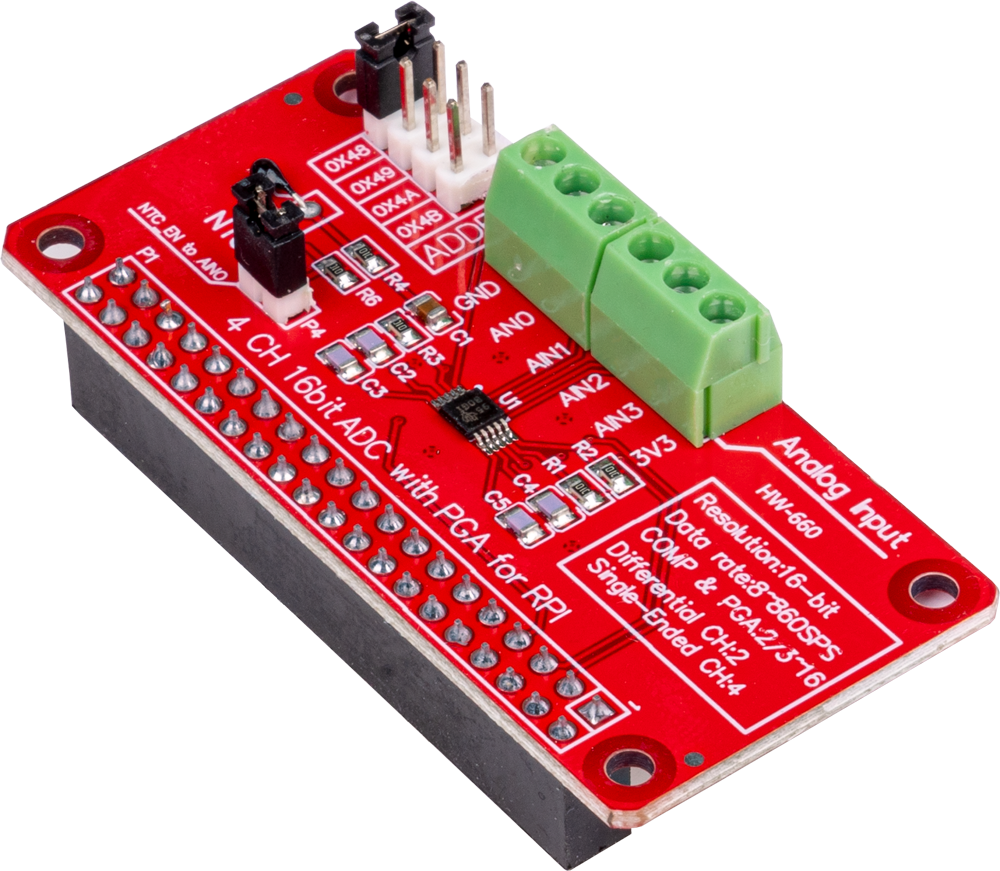

With the help of the RB-ADC01 you can read analog data with your Raspberry Pi. The 16-bit chip ADS1115 is an analog to digital converter that processes the analog signal to digital data and sends it via I2C bus to the Raspberry Pi.The ADC module can be easily plugged on the GPIO header. So analog sensors and other accessories can be used.ModelADS1115FunctionAnalog Digital ConverterInterfaceI2CChannels4Analog input voltage3.3 VAnalog input current10 mA continuous100 mA peakResolution16 bitUsed I2C address0x48(default)0x49, 0x4A, 0x4B (configurable)Programmable data rate8 SPS to 860 SPSSpecial featureUsing analog peripherals with the Raspberry PiOperating temperature-30 to 80°CDimensions65 x 30 x 18 mmItems ShippedRB-ADC01 moduleEAN4250236822006Article No.RB-ADC01
