2G/3G/4G/5G/GPS, 3.2 dBi, SMD,Taoglas mobilantenne

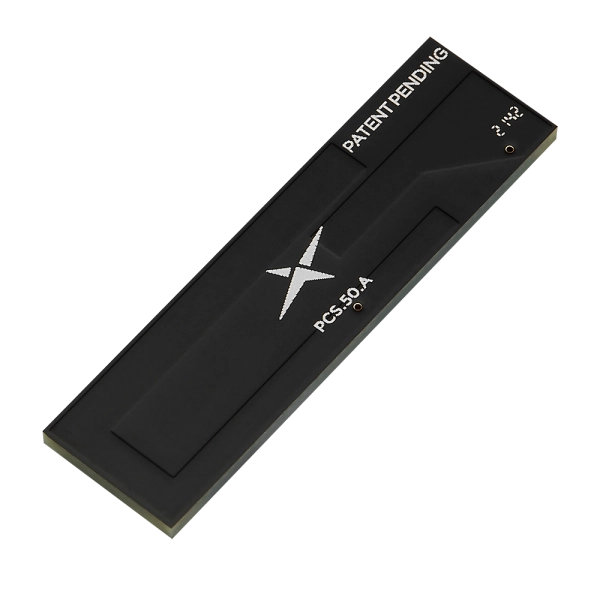

Universe – PCS.50.A is a patent pending active Cellular and GNSS antenna designed specifically for IoT devices with small ground planes.SMD Dielectric AntennaLTE: 698-960MHz, 1710-2700MHzGPS / GLONASS / Galileo / BeiDou (1561-1602MHz)Adjusts the resonance frequency of the antenna to the desired frequency bandDimensions: 38*10*1.6mmSmart antenna solution with aperture tuningRoHS & REACH Compliant Netværksapplikationer2G3G4GGPSForstærkning3.2 dBiMonteringstypeSMDFrekvensbåndområde1.57 ... 1.61 GHz1.71 ... 2.69 GHz617 ... 698 MHz746 ... 800 MHz800 ... 880 MHz880 ... 960 MHzNetværk/teknologi4G LTE5G NRFR1HSPAHSPA+TD-SCDMAWCDMAImpedans50 OhmNominel effekt5 WPolariseringLineærLængde38 mmBredde10 mmHøjde1.6 mmMaterialeFR4Driftstemperatur, min.-40 °CDriftstemperatur, maks.85 °C
