Assembly and Soldering Frames 4xEuro

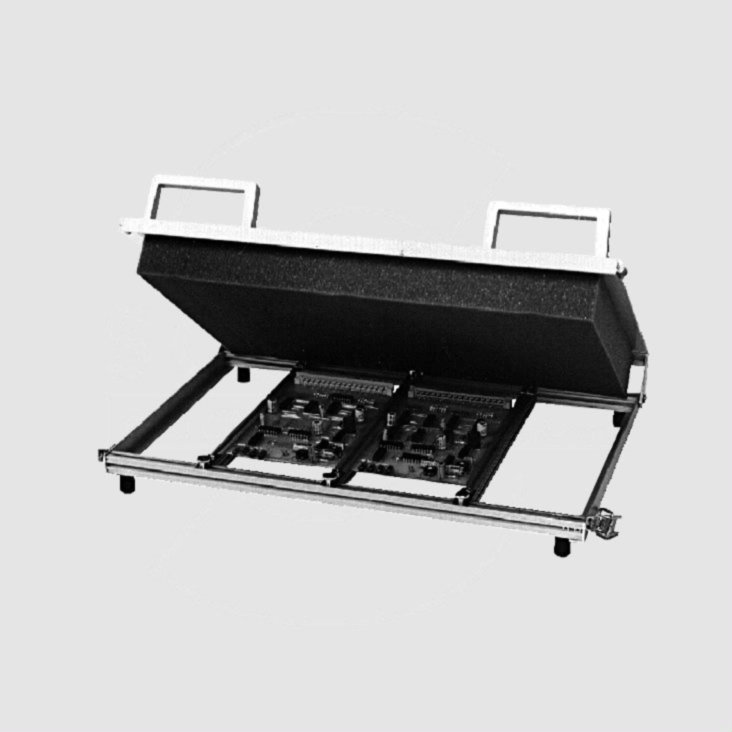

Gruppe: T3511GIE-TEC Assembly and Soldering FramesSeries: BL14ApplicationAbove the frame a 40mm thick foam lining in the lid holds the components in position during soldering. The whole device is turned 180°, the lid handle acting as a tilting support. Retaining steel springs can be attached to the rails by screws, allowing the removal and insertion of boards at will after initial location of the rails. The lid is removable to facilitate populating the board.Features• Aluminium frame and aluminium lid• Two resp. three movable rails with slots for inserting the boards• Lid with 40mm thick foam liningComplete Populatiang and Soldering FramesSee diagramPart Nr.SizeBoard Size, Max.  [mm][mm] BL142042260x240x70230x185 (2 Eurocards) BL142043405x260x70230x350 (4 Eurocards) AccessoriesNo diagram • BL149241: Circuit board holding rail• BL149242: Retaining springTerms of DeliveryMinimum order quantity: 1 PKU = 1 pieceManufacturer http://www.gie-tec.de
