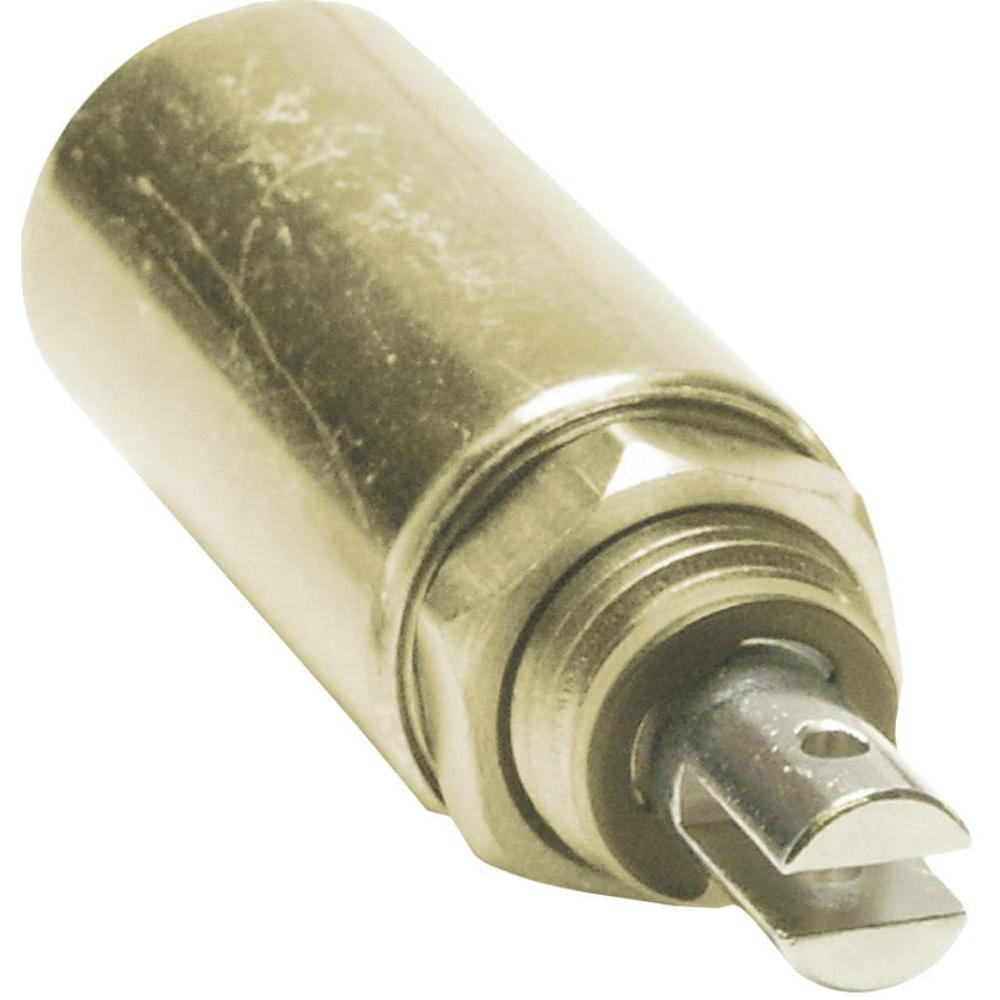

Solenoid Cylindric 1949 Z 12V

Gruppe: E4355 Solenoids Series: ITS-LZ Cylindrical Magnet for 12V/24VMaksimal vandring: 20mmFeatures• Cylindrically housing • with fixing screw • Stable housing for use in harsh environment • Available as pull version or push version include recuperating spring • Min. 200mm connecting lead Technical Specifications       Part Nr.UNINPNFHFAFEITS-LZ_[V DC][A][A][kg][kg][kg]1335_-12120,33340,2500,421335_-24240,16740,250,421949_-12120,58371,10,6111949_-24240,29271,10,6112560_-12120,833102,20,75222560_-24240,417102,20,7522UN= Voltage, IN= Current, PN= Power at 100%ED, FH = Holding Force, FA = Start Force, FE = End Force Dimensions and Weights     Part Nr.ØxLWeightWeightScrew  SolenoidAncherThreadITS-LZ_[mm][g][g] 1335_13x35234,90,375"-32UNEF-2A1949_19x4982200,562"-18UNF-2A2560_25x60178430,75"-16UNF-2A Coil Data    Part Nr.EDRelEDMax.PMax.ITS-LZ_[%][sec][W]1335Z-12100¥41335D-12505081335Z-24255161335D-24102401949Z-12100¥71949D-1250230141949Z-242525281949D-24106702560Z-12100¥102560D-1250360202560Z-242532402560D-24108100EDRel = Duty Cycle, EDMax. = Duty Cycle, Max., PMax. = Capaticy, Max. at 20°C
