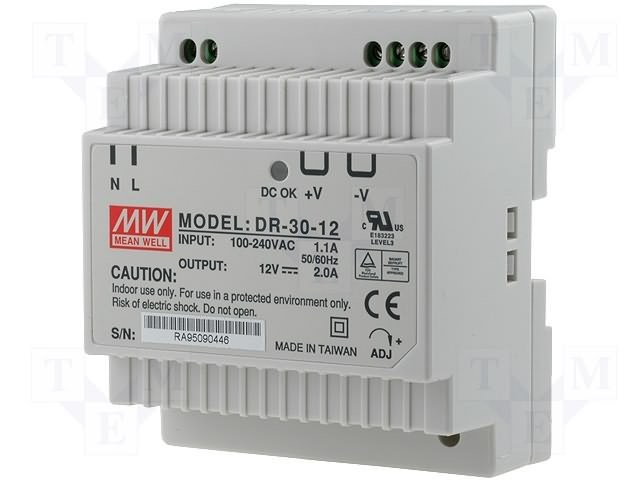

SPS DIN-Rail 24W 12V/2A

Gruppe: L5121MEANWELL Switching Power SuppliesSeries: DR-30DIN-Rail Assembly, Single OutputOutput: 15 to 36WFeatures• Direct assembly on DIN Rail• Enclosed case, Touch-guard screw terminals• Universal input• Overload protection, current limiting, auto recovery• Protections: short circuit/over load/over voltage• Power-on LED display• Insulation Class IITechnical SpecificationsInput Voltage:85...264V AC (47...63Hz)120...370V DCInput Inrush Current, Max.:30AOutput Voltage Adjustment:±10%Over Load Protection:105...160%Withstand Voltage, I/P-O/P:3000V ACOperating Temperature:-20...+60°CWeight:270gI/P = Input, O/P = OutputPart Nr.UAIAPADUAURNh [V][A][W][%][mVp-p][%]DR-30-550...31528074DR-30-12120...224112081DR-30-15150...230112082DR-30-24240...1,536115083UA = Output Voltage, IA = Output Current Range, PA = Output Power, DUA = Output Voltage Tolerance, URN = Ripple & Noise, h = EfficiencyLabelling Terms of DeliveryMinimum order quantity: 1 PKU = 1 pieceManufacturer http://www.meanwell.com
