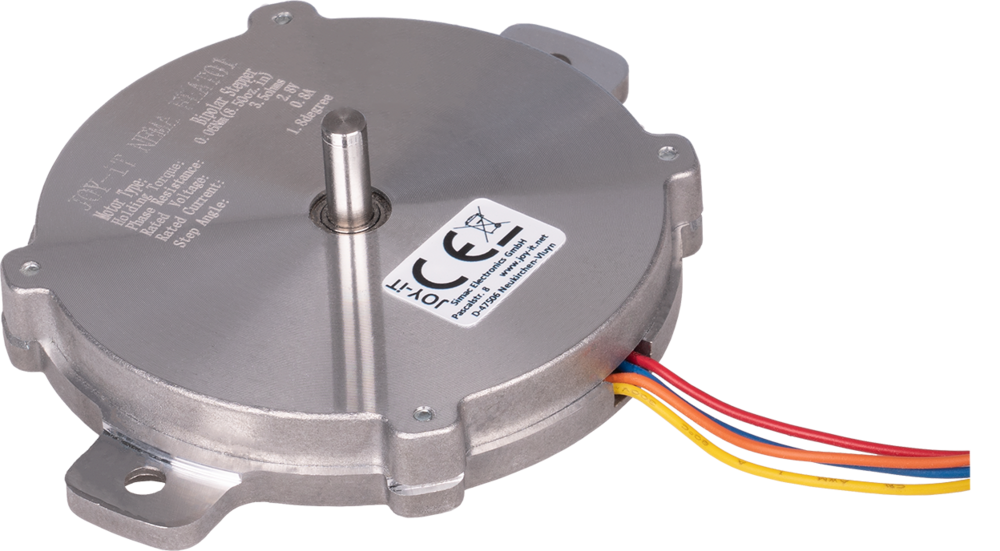

Flat NEMA stepper motor

These flat stepper motors have especially been developed for the feeders in semiconductor production.These stepper motors can be used very well in other applications with limited assembly space.Shaft dimensionsØ 4 x 10 mmInterface connections4 pin JST cable connectorCable length70 mmSpecial characteristicsUltraslim DesignHolding torque60 mNmRated voltage2.8 VRated current0.8 AStep angle1.8° ±5 %No. of phases2Phase resistance3.5 ΩPhase inductivity1.8 mHIsolation resistance100 MΩ min. @500 V DCIsolation classB (130 °C)Rotational inertia15 g·cm²Detent torque8 mNmpermitted operating temperature-10 °C to 50 °CDimensionsØ 60 x 9,6 mmWeight75 gItems Shipped1x NEMA-Flat01 stepper motorEAN4250236821641Article No.NEMA-FLAT01
