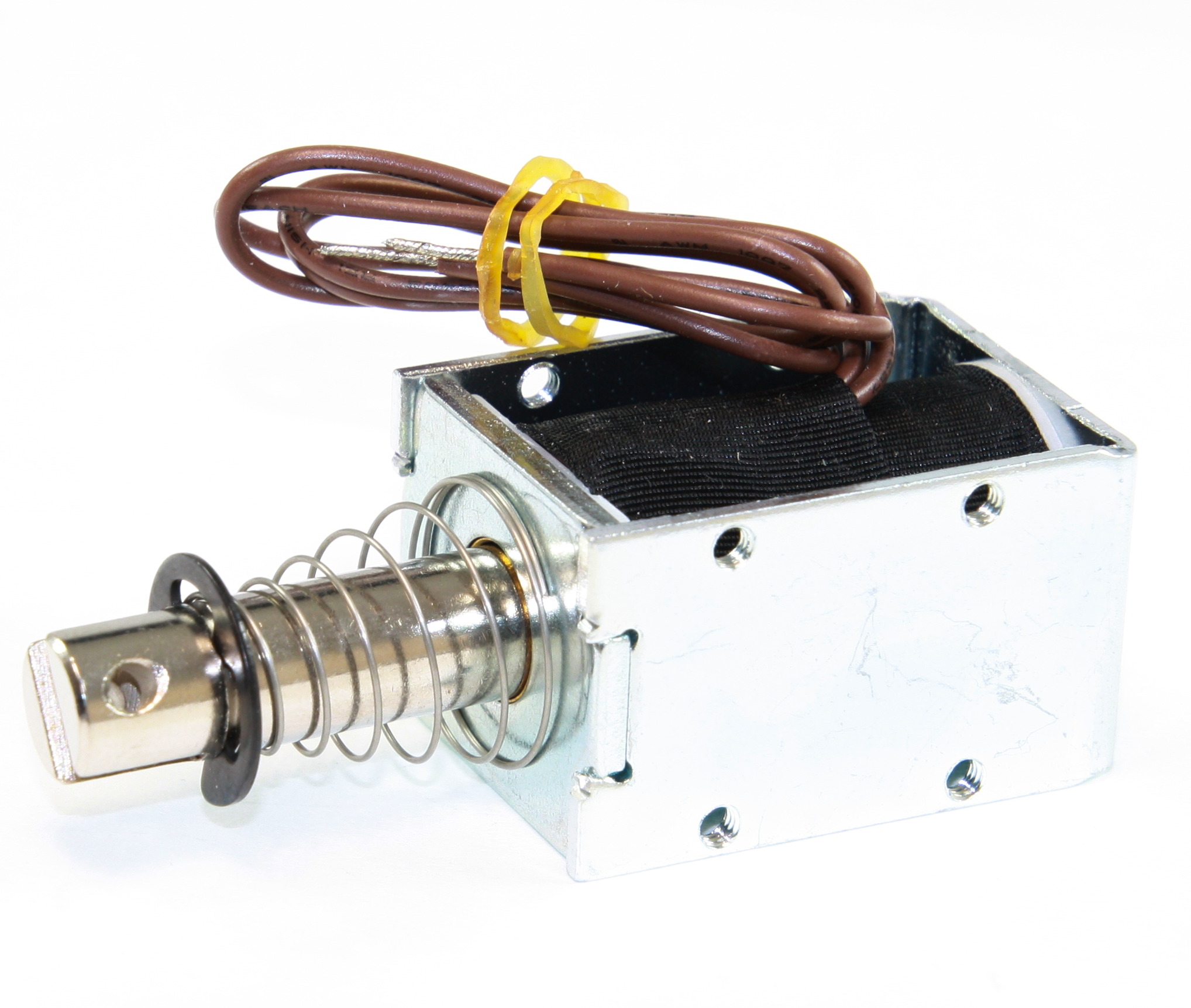

Solenoid Framed 2924b D -12V

Gruppe: E4357SolenoidsSeries: ITS-LSFramed Magnetfor 12V/24VFeatures• Framed Magnet • with mounting holes• Available as pull version or push version include recuperating spring• Low weight because of open framed housing• Open framed with closed brace• Min. 200mm connecting leadTechnical SpecificationsPart Nr.UNINPNFHFAFEITS-LS_[V DC][A][A][kg][kg][kg]1110B_-12120,0191,10,1200,0180,21110B_-24240,0461,10,1200,0180,22924B_-12120,3754,51,10,21,0222924B_-24240,1874,51,10,21,0223830B_-12120,66685,60,25,63830B_-24240,33385,60,25,6UN= Voltage, IN= Current, PN= Power at 100%ED, FH = Holding Force, FA = Start Force, FE = End ForceDimensions and WeightsPart Nr.ØxLWeight SolenoidWeight AncherScrew ThreadITS-LS_[mm][g][g] 1110B_21,3x11x101022-2*M22924B_40x29x24122222-4*M3*0,53830B_64x38x30363712-4*M3*0,5Coil DataPart Nr.EDRelEDMax.PMax.ITS-LS_[%][sec][W]1110BZ-12100¥1,11110BD-1250502,21110BZ-2425184,41110BD-24102112924BZ-12100¥4,52924BD-125014092924BZ-242550182924BD-24109453830BZ-12100¥83830BD-1250150163830BZ-242550323830BD-2410980EDRel = Duty Cycle, EDMax. = Duty Cycle, Max., PMax. = Capaticy, Max. at 20°CTerms of DeliveryMinimum order quantity: 1 PKU = 1 pieceManufacturerVarious
