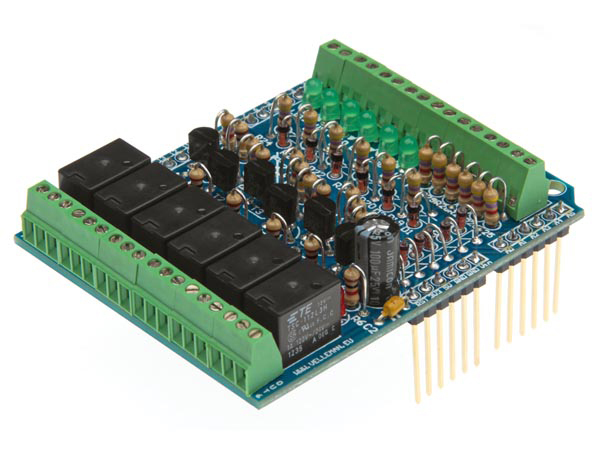

Velleman I/O-shield til Arduino™ (færdigsamlet)

General purpose INPUT - OUTPUT shield for Arduino®Also available in kit version KA05.Features6 relay outputs: 0.5A max 30V (*)6 analog inputs6 digital inputsdownloadable sample sketchstackable design: the shield can be stacked with other shieldslarge user communityrequires 1 Arduino UNO™ (not included)Specifications1 A (max.) load per output30 V max. per outputuses pin 8 to 13 as outputs, pin A0 to A5 as analog inputs, and pin 2 to 7 as digital inputsdimensions: 70 x 55 x 30 mm / 2.75 x 2.16 x 1.18"Extras(*) It is required to power the Arduino UNO (not supplied) with a 12V DC 500mA power supply (not supplied) This shield will not work with the Arduino Yún. Use the KA08 or VMA08 with the Arduino Yún.
