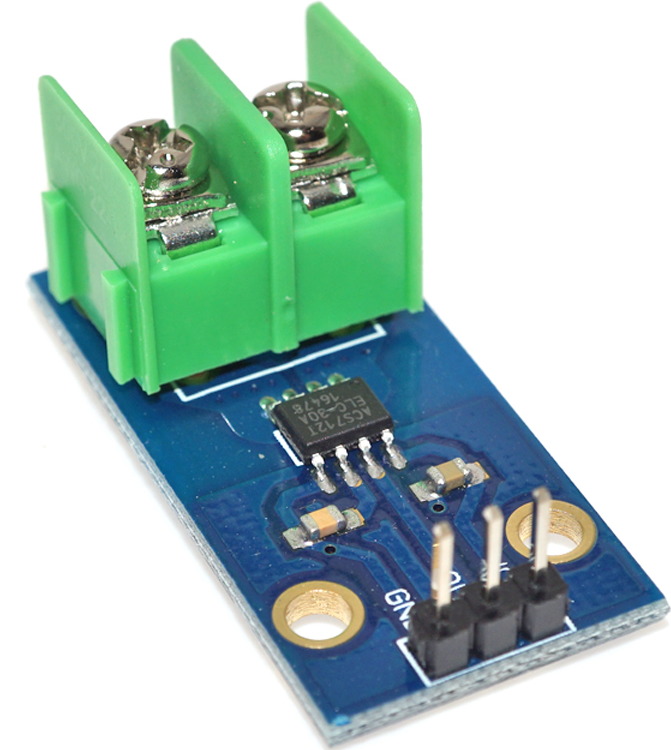

GY-712 ACS712ELCTR 5A-30A Range Current Sensor Module

GY-712 ACS712ELCTR 5A-30A Range Current Sensor Module Product Description1.Sensor: ACS712ELCTR-20A.2.Stable output offset voltage.3.Internal Conductor Resistance: 1.2mΩ.4.Output Sensitivity: 66-185mV / A.5.Measurement range:20A.6.When the current is 0, the output is the power midpoint voltage, isolation type.7.Working Voltage: 5V,corresponding Analog output: 100mV / A.8.Working Current: 10mA.9.Working Temperature: -40-85℃.10.Dimension (L x W x T): 36 x 18 x 13mm.
