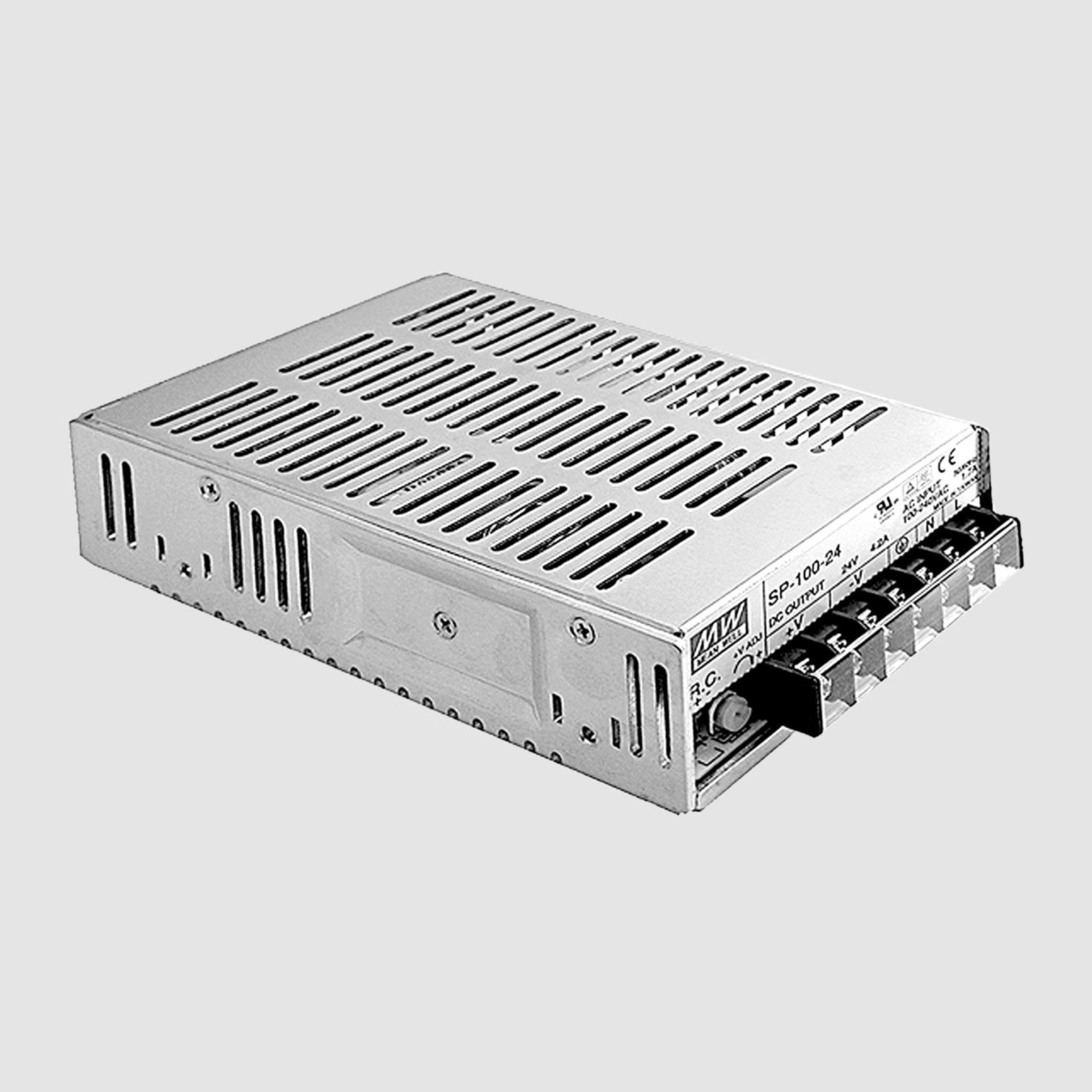

SPS Case 101W PFC 24V/4,2A

Gruppe: L6321MEANWELL Switching Power Supplies Series: SP-100 Case, Single Output Output: 66 to 103WFeatures• Enclosed case, screw terminals• Universal input• Overload protection, current limiting, auto recovery• Protections: short circuit/over load/over voltage• Built-in active PFC functionTechnical Specifications  Input Voltage:85...264V AC (47...63Hz)120...370V DCInput Inrush Current, Max.:30ALeakage Current, Max.:2mAOutput Voltage Adjustment:+10/-5Over Load Protection:105...150%Withstand VoltageI/P-O/P:3000V ACI/P-FG:1500V ACO/P-FG:500V ACOperating Temperature:-10...+60°CWeight:660gI/P = Input, O/P = Output, FG = Frame Ground       Part Nr.UAIAPADUAURNh [V][A][W][%][mVp-p][%]SP-100-3.33,30...2066210070SP-100-550...20100210076SP-100-7.57,50...13,5101,2210078SP-100-12120...8,5102210080SP-100-13.513,50...7,5101,2210080SP-100-15150...6,7100,5210082SP-100-24240...4,2100,8115084SP-100-27270...3,8102,6115083SP-100-48480...2,1100,8125082UA = Output Voltage, IA = Output Current Range, PA = Output Power, DUA = Output Voltage Tolerance, URN = Ripple & Noise, h = EfficiencyNoteYou will find installation material in product group L6911.Labelling Terms of DeliveryMinimum order quantity: 1 PKU = 1 pieceManufacturerhttp://www.meanwell.com
