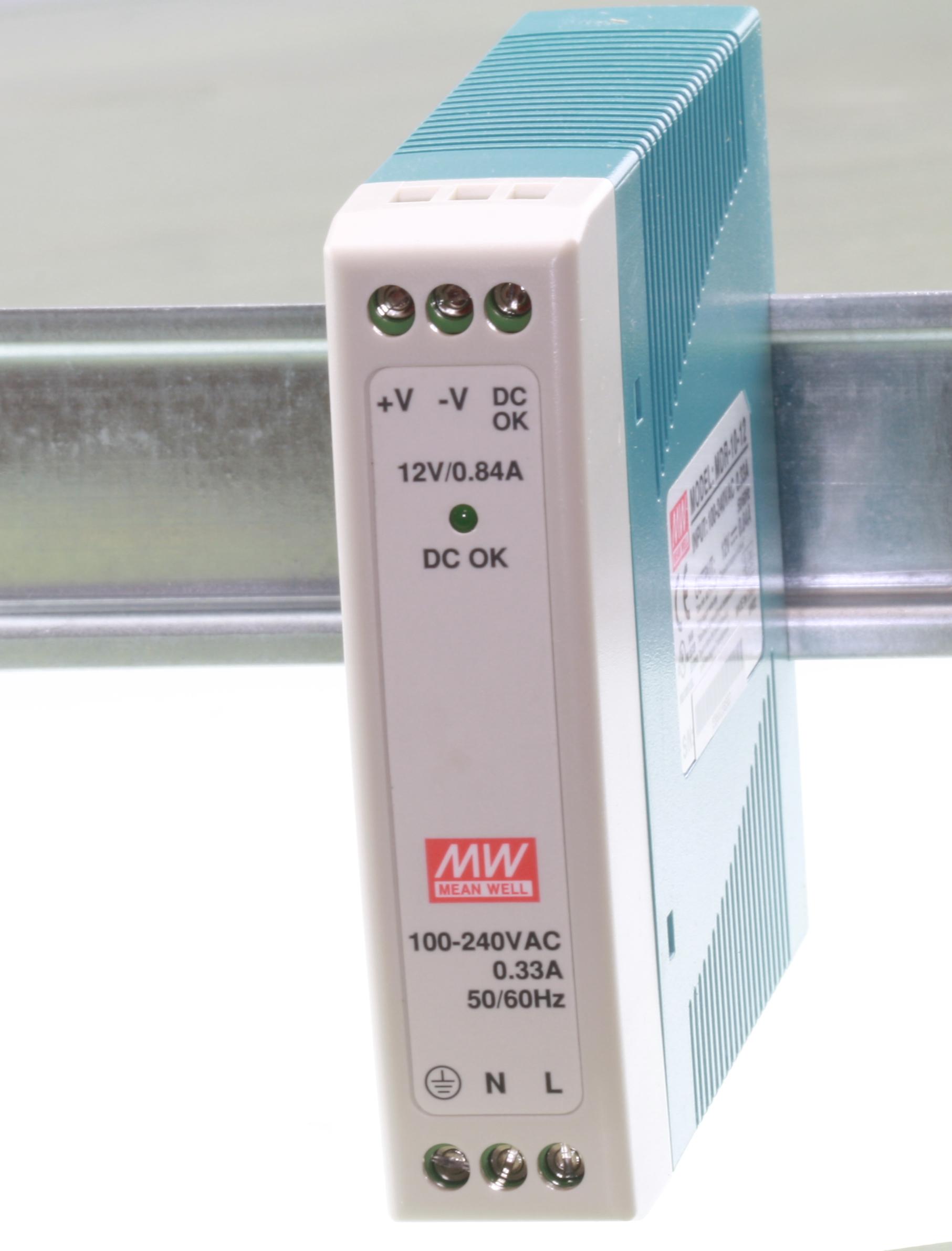

SPS DIN-Rail 10W 12V/0,84A

Gruppe: L5131MEANWELL Switching Power SuppliesSeries: MDR-10DIN-Rail Assembly, Single OutputOutput: 10WFeatures• Direct assembly on DIN Rail• Enclosed case, Touch-guard screw terminals• Universal input• Overload protection, pulsing hiccup shutdown, auto recovery• Protections: short circuit/over load/over voltage• Power-on LED display• Low no load power consumption• DC OK signal• NEC Class 2 compliantTechnical SpecificationsInput Voltage:85...264V AC (47...63Hz)120...370V DCInput Inrush Current, Max.:70ALeakage Current, Max.:1mANo Load Power Consumption, Max.:0,75WOver Load Protection:>105%Withstand VoltageI/P-O/P:3000V ACI/P-FG:1500V ACO/P-FG:500V ACOperating Temperature:-20...+70°CWeight:170gI/P = Input, O/P = Output, FG = Frame GroundPart Nr.UAIAPADUAURNh [V][A][W][%][mVp-p][%]MDR-10-550...21058076MDR-10-12120...0,8410312080MDR-10-15150...0,6710312080MDR-10-24240...0,4210215085UA = Output Voltage, IA = Output Current Range, PA = Output Power, DUA = Output Voltage Tolerance, URN = Ripple & Noise, h = EfficiencyLabelling Terms of DeliveryMinimum order quantity: 1 PKU = 1 pieceManufacturer http://www.meanwell.com
