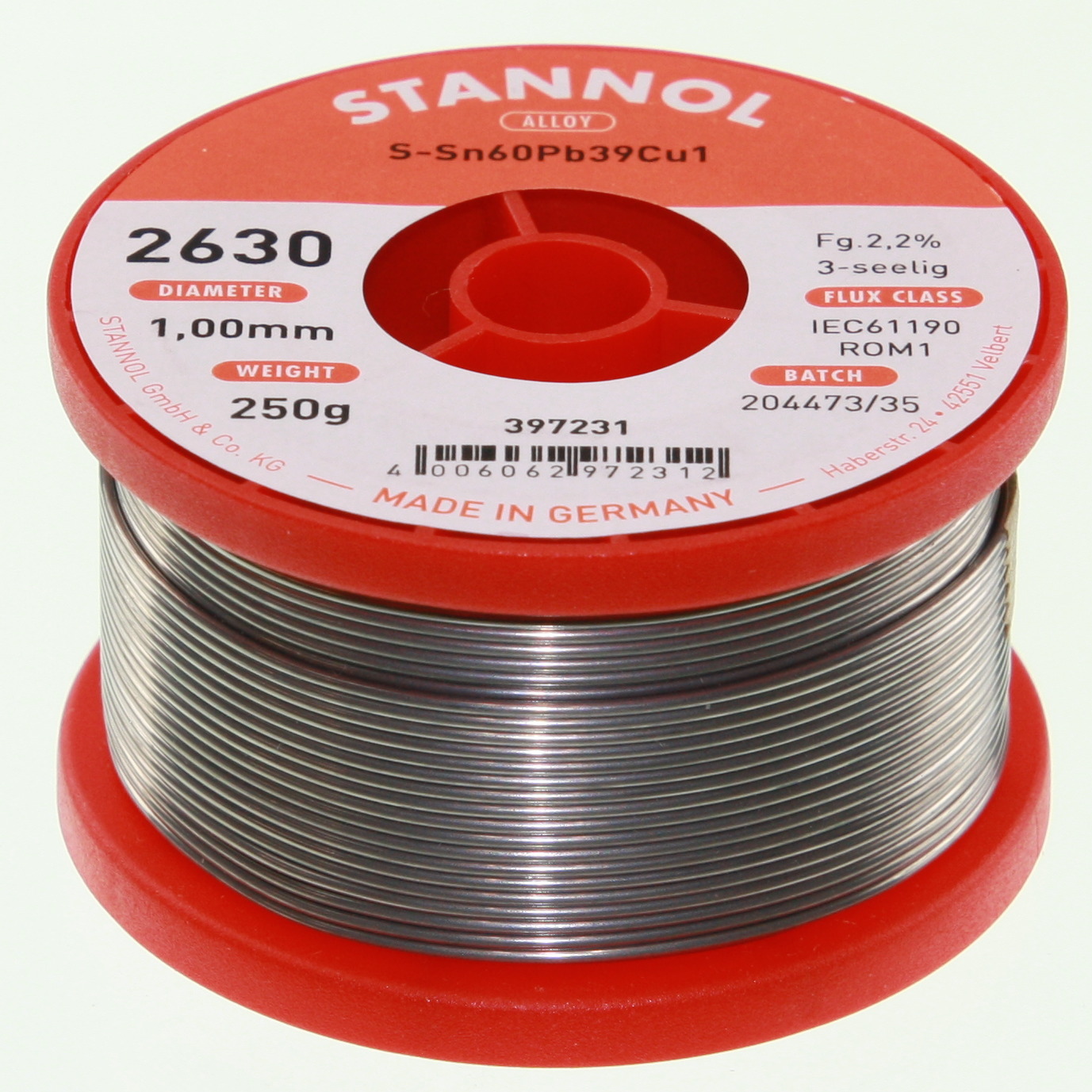

Loddetin spec 2630 2,2% 1,0mm 250g/ 397231

Gruppe: R5151STANNOL Leaded Soldering Wires Halide-activated Flux 2,2% Diameter: 0,5, 0,7 and 1,0mm  Features • Halide-activated resin fluxes • High activity, good spread and high residue reliability• Optimal wetting and spreading properties• Shiny solder joints with minimal flux residues• Flux residues - can be left on the PCB• Soldering operations on transformers and soldering copper cables with large cross sections• When a stronger flux is needed due to the high termal capacity of the components that require soldering• Hand and robot soldering Technical Specifications   Melting Range:183...190°CFlux Type (IEC 61190-1-3 ROM1):1.1.2.BFlux Content:2,2%Corrosive Effects (DIN 8516):NoneAlloy (ISO 9453:2006):S-Sn60Pb39Cu1Flux Core:5 Core NoteThe products with suffix -PB in this product group do not meet the requirements of the EU directive concerning the use of hazardous substances in electrical and electronic devices (RoHS). The use of these products may contradict hazardous-substance legislation in your country. Terms of DeliveryMinimum order quantity: 1 PKU = 1 piece

• Kategori: 222
