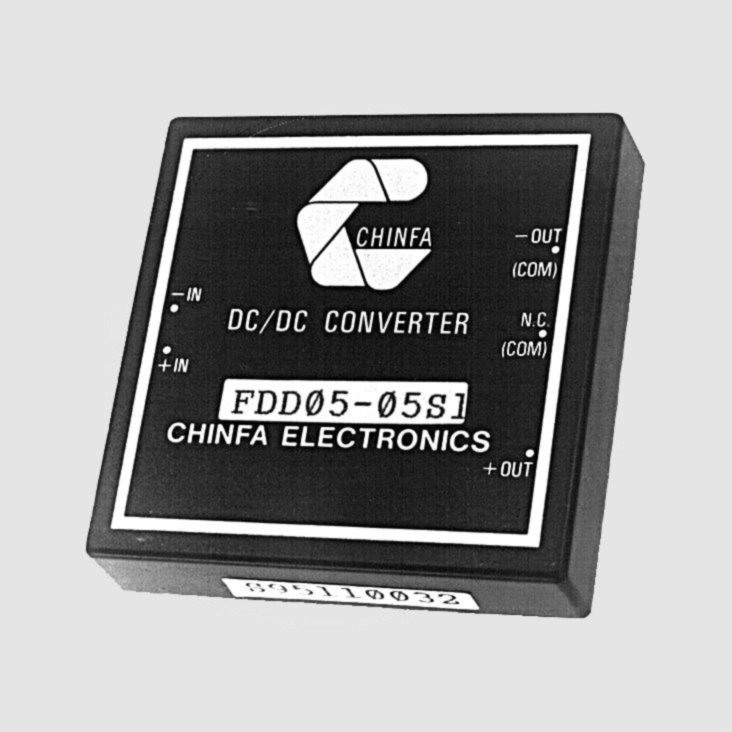

DC/DC-Conv 9-18V:+5V 1000mA 5W

Gruppe: L8361CHINFA DC/DC Converter ModulesSeries: FDD05Brick Housing, Single OutputInput Voltage Ratio: 2:1 and 3:1Output: 5 to 6WFeatures• 2" x 2" housing• For direct PCB mounting• Wide input voltage range 2:1 and 3:1• DC decoupling of input and output• Input/output insulation 1500V• Regulated output voltage• Short-circuit proofTechnical SpecificationsInput Voltage:See TableWithstand Voltage:1500V DCOperating Temperature:-25...+71°CWeight:45gPart Nr.UEUAIAURNh [V][V][mA][mVp-p][%]FDD0505S19...185100015063FDD0512S19...181250015068FDD0505S218...365100015072FDD0505S20...605100015072FDD0512S20...601250015072UE = Input Voltage, UA = Output Voltage, IA = Output Current Range, URN = Ripple & Noise, h = EfficiencyPin AssignmentPin 1:+UINPin 2:-UINPin 3:+UOUTPin 4:-Pin 5:-UOUTNoteA built-in shunt diode and an external fuse is recommended as a reverse voltage protection (input).Terms of DeliveryMinimum order quantity: 1 PKU = 1 pieceManufacturerChinfahttp://www.chinfa.com
