ESP32 Kamera

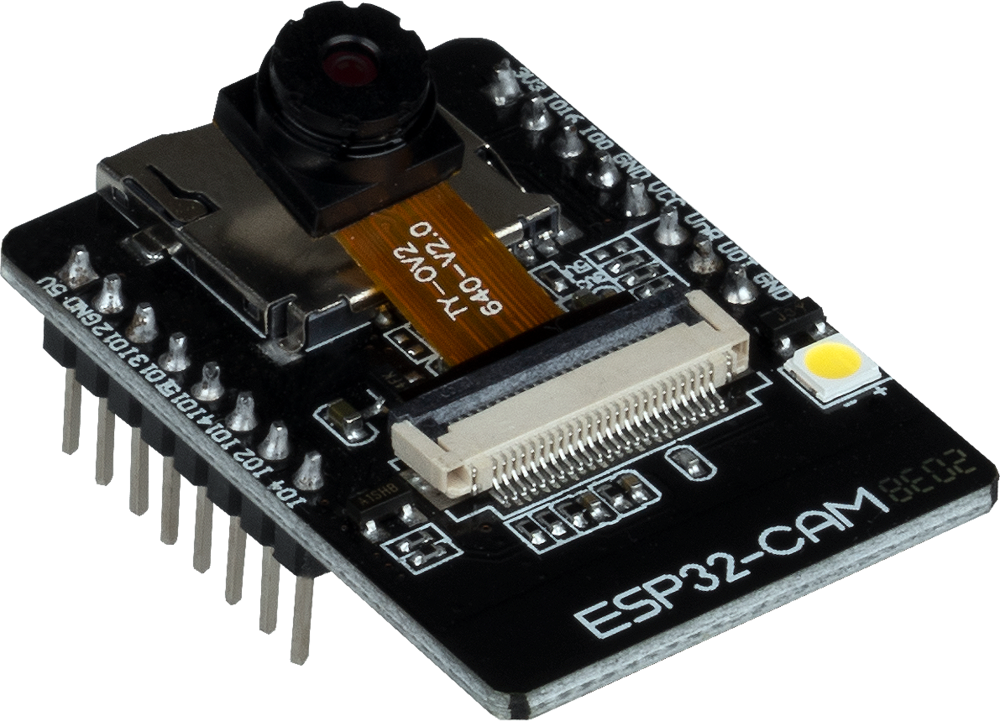

The ESP32-Cam is a compact camera module with low power consumption, multiple interfaces ( SPI / I²C / UART / PWM ) and is therefore suitable for many IoT applications and home projects ( e.g. video surveillance, QR identification and much more ). It is based on the popular ESP32, has a 2 megapixel camera with integrated LED flash and an SD card slot ( up to 4GB memory ), allowing images to be saved directly to the memory card.Thanks to the BT radio and Wifi interface, the ESP32 camera module can communicate wirelessly, so it can be integrated into your own network (Internet access) and the images can be saved on a web server.Camera2MP OV2640Photo formatsJPEG, BMP, GrayscaleProcessorDual Core-ESP32 160 MHzBesonderheitenBright Flash-LED, integrated antennaInterfacesUART, SPI, I2C, PWM, Wi-Fi, BT-wireless connectionSD-Card slotUp to 4 GBSPI Flash32 MbitRAM52KB SRAM + 4MB PSRAMSupply voltage5 VOperating temperature-20°C ~ 85°CUART standard Baudrate115200 bpsPower consumption6mA in deep sleep; 180 mA without flash; 310 mA with flash at max. brightnessSecurityWPA, WPA2, WPA2-Enterprise, WPSDimensions27 x 40,5 x 4,5 mmItems ShippedCamera module, cameraEAN4250236818016Article No.SBC-ESP32-Cam
