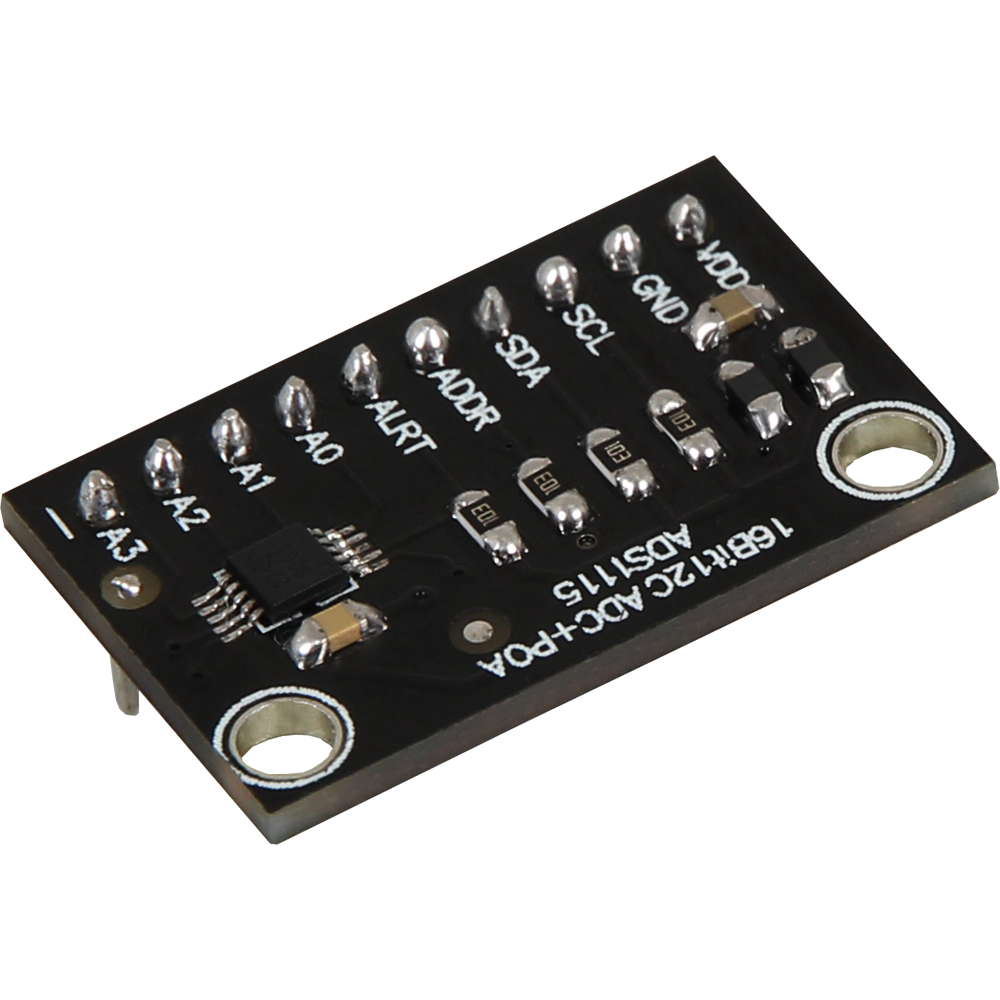

Analog-Digital Converter

Unlike the Arduino, the Raspberry Pi neither have analog inputs nor an ADC (analog to digital converter) integrated in the chip. This restricts the usage of the Raspberry Pi, if you want to use sensors by which the values cannot be output digitally. You can solve this problem with this analog digital converter.This module has four 16 bit precise ADC channels, which you can use with the Raspberry Pi to expand it with four analog inputs. It will be connected via I2C to the Raspberry Pi and takes over the analog measurement and passes the value to the Raspberry Pi digitally.Furthermore, this converter is suitable for use with microcontrollers, if the resolution or the number of the ADC Channels of the microcontroller is not high enough.ModelAnalog Digital Converter ADS1115InterfaceI²CADC channels4Resolution per channel16 BitProgrammable sampling rate8 - 860 SPSOperating Voltage2 - 5.5 VAnalog input voltage0 V - operating voltageI²C logic voltage0 V - 5.5 VI²C address (configurable via jumper)0x48 - 0x4BTypical operating current150 μADimensions18 x 28 mmWeight1 gItems ShippedADS1115 on moduleEAN425023681598Article No.COM-KY053ADC
