STSPIN220 Low-Voltage Stepper Motor Driver Carrier

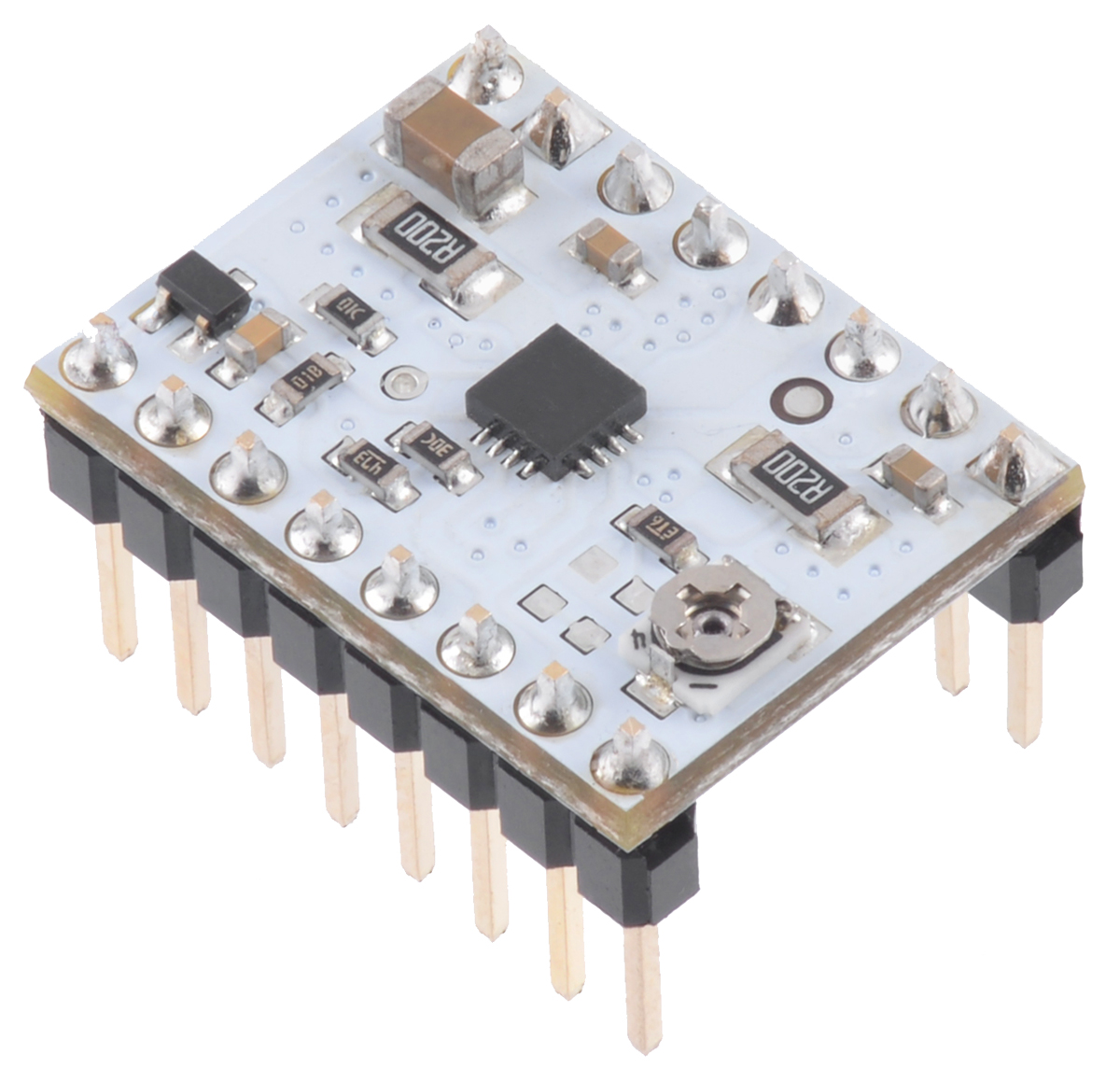

STSPIN220 Low-Voltage Stepper Motor Driver Carrier (Header Pins Soldered)This version of our STSPIN220 Low-Voltage Stepper Motor Driver Carrier ships with male header pins installed as shown in the main product picture, so no soldering is required to use it with an appropriate 16-pin socket or solderless breadboardDimensionsSize:0.6″ × 0.8″Weight:2.5 gGeneral specificationsMotor driver:STSPIN220Minimum operating voltage:1.8 VMaximum operating voltage:10 VContinuous current per phase:1.1 AMaximum current per phase:1.3 AMinimum logic voltage:1.6 VMaximum logic voltage:5.5 VMicrostep resolutions:full, 1/2, 1/4, 1/8, 1/16, 1/32, 1/64, 1/128, 1/256Current limit control:potentiometerReverse voltage protection?:NHeader pins soldered?:YIdentifying markingsPCB dev codes:md39aOther PCB markings:0J11899
