5 MP Infrared camera

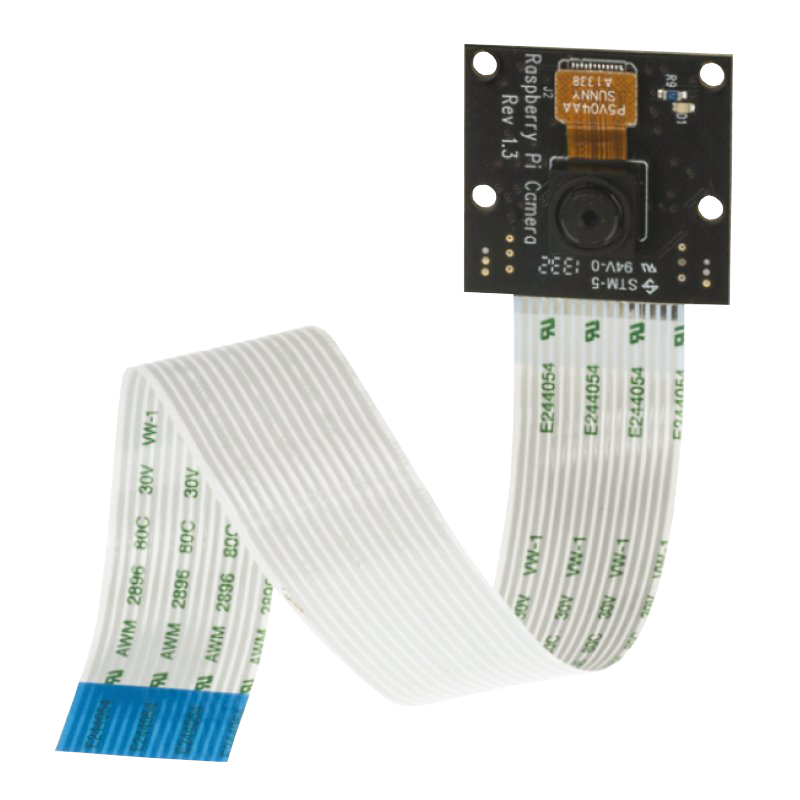

The Raspberry Pi NoIR camera module is an add-on for the Raspberry Pi. This module is perfectly suitable for taking infrared picture because it does not have installed a "IR-Cut-filter".The dedicated CSI interface which is specially developed for the connection with cameras, can be used with this camera. The CSI bus is capable of processing a huge amount of data rates.The module is with its 25 x 20 x 9 mm very compact. Through its low weight it is perfect for mobile or other applications whereby the size and the weight are important.It is also connected with the Raspberry via a ribbon cable (a standard cable which is in the scope of delivery, is separately obtainable in different lengths).The sensor itself has a resolution of 5 Megapixel and has installed a focus lens. The camera can take still images with a resolution of up to 2592 x 1944 Pixels. Moreover, it has different modes for video recordings.ModelInfrared camera for Raspberry PiInterfaceDigital video connectionvideo resolution1920 x 1080 Pixel (Full HD)Modi for videos1080p at 30 frames/sec., 720p at 60 frames/sec., 640 x 480 at 90 frames/sec.Max. frame rate30 fpsPhoto resolution2592 x 1944 PixelResolution5 MegapixelDimensions25 x 9 x 24 mmWeight3 gItems ShippedCamera, ribbon cableEAN4250236809236Article No.rb-camera-2IR
