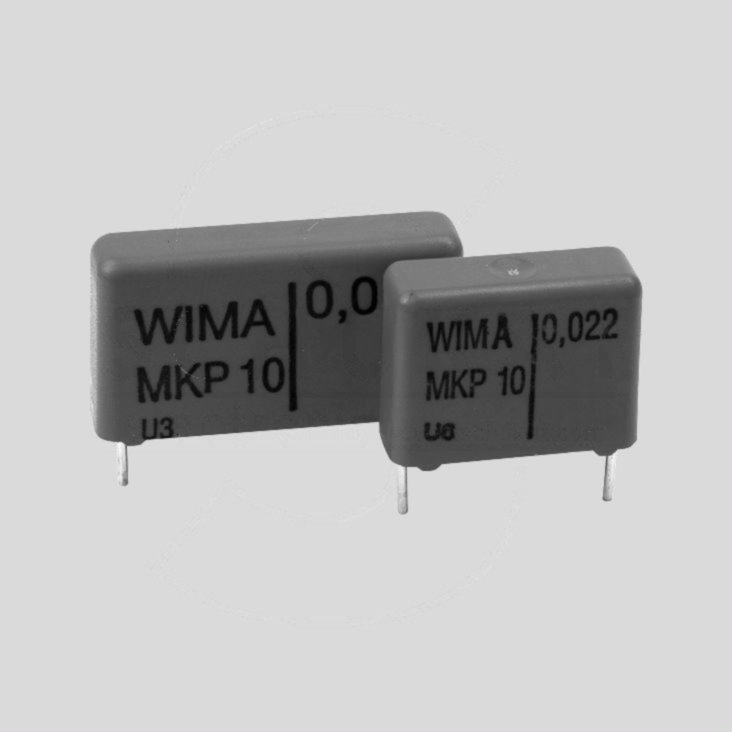

MKP Capacitor 4,7uF 400V 10% P37,5

Features• Dielectric: Polypropylene film• Capacitor electrodes: Double-sided metallized plastic film• Encapsulation: solvent-resistant, flame-retardent plastic case with epoxy resin seal, UL94V-0 • Terminations: tinned wire• Pulse duty construction• Self-healing• Very low dissipation factor• Negative capacitance change versus temperatureTypical ApplicationsFor pulse applications e.g. switch mode power supplies, TV and monitor sets, lighting, audio/video equipmentTechnical SpecificationsRated Voltage (UN):see TableTest Voltage (2s):1,6xUNCapacitance Tolerance:±10%Temperature Range:-55...+100°CClimatic Category IEC:55/100/56Insulation ResistanceC330nF:³100000 MWC>330nF:³30000sReliability (40°C, 0,5 x UN):1,0 fit1)1) 1fit = 1x10 -9 Failure Components/Hour Part Nr.CNUNUeffBHLRMMKP10_[nF/μF][V DC][V AC][mm][mm][mm][mm]N6,8K100-76,84002504,09,010,07,5N010K400-7104002504,09,010,07,5N047K400-15474002505,011,018,015,0N100K400-151004002507,014,018,015,0N150K400-151504002508,015,018,015,0N220K400-222204002507,016,526,522,5N330K400-223304002508,518,526,522,5N470K400-2247040025010,519,026,522,5N680K100-2768040025011,021,031,527,5U1,0K400-271,040025013,024,031,527,5U1,5K400-271,540025017,029,031,527,5U2,2K400-372,240025017,029,041,537,5U4,7K400-374,740025020,039,541,537,5U010K250-371025018024,045,541,537,5CN = Rated Capacitance, UN = Rated Voltage DC, Ueff = RMS VoltagePulse Rise TimeCNF400V  [V/μs] 10nF...22nF:1800 33nF...68nF:1200 100nF...220nF:1200 330nF...680nF900 1,0μF...2,2μF:500 3,3μF...6,8μF:400 10μF...22μF:200 F400V = Pulse rise time for 400VDissipation Factor Tand (20°C)  Measured at  1kHz10kHz100kHzC3x10-44x10-415x10-4100nF3x10-46x10-4-C3x10-4--LabellingColour red, Marking: BlackEpoxy resin seal: colour redManufacturer http://www.wima.de
