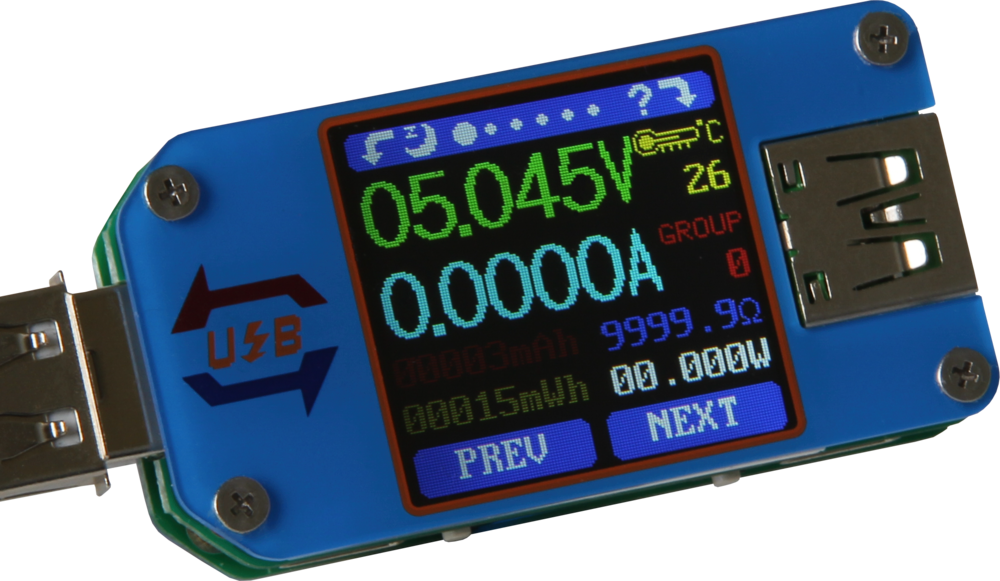

UM25C Measuring Instrument

USB ports can be found not only at your computer at home but also at powerbanks, in the car or in the train. Although, not all ports are high-quality und deliever steady currents and voltages. The JT-UM25C allows to see all values. The measuring instrument supports additional functions like Quickcharge 2.0 and 3.0 as well as Apple 2.4A, 2.1A, 1A, 0.5A and Android DCP and offers an analysis through the radio interface. The area of measuremnet is up to 24 V and 5A which makes it practical for all areas of application. The integrated 1.44" LCD-display can be regulated in five levels of brightness and offers an overview of all measured values at all time.FeaturesMeasuring device for USB applications; Measured value output via LCD display; Display of current, voltage, energy, power, voltage curve, internal resistance, temperature (int. sensor); Output via BT for evaluation on PC/Smartphone; Supports: Quickcharge2.0, QC3.0, APPLE 2.4A/2.1A/1A/0.5A Android DCP, SAMSUNGUSB PortsUSB2.0, Micro USB, USB Typ-CMeasuring range4 - 24V DC / 0 - 5A / 0 - 99h 59min 59 sec / -10 - 100°CMeasuring accuracy0,001V / 0,0001ARefresh rate2 HzDisplayLCD Color-Display with 5 brightness levelsDisplay size1,44“CommunicationBT connection (for evaluation on Smartphone+PC)Bluetooth password1234Dimensions71,2 x 30,5 x 12x4 mmWeight23,74 gItems ShippedUM25CEAN4250236817866Article No.JT-UM25C
