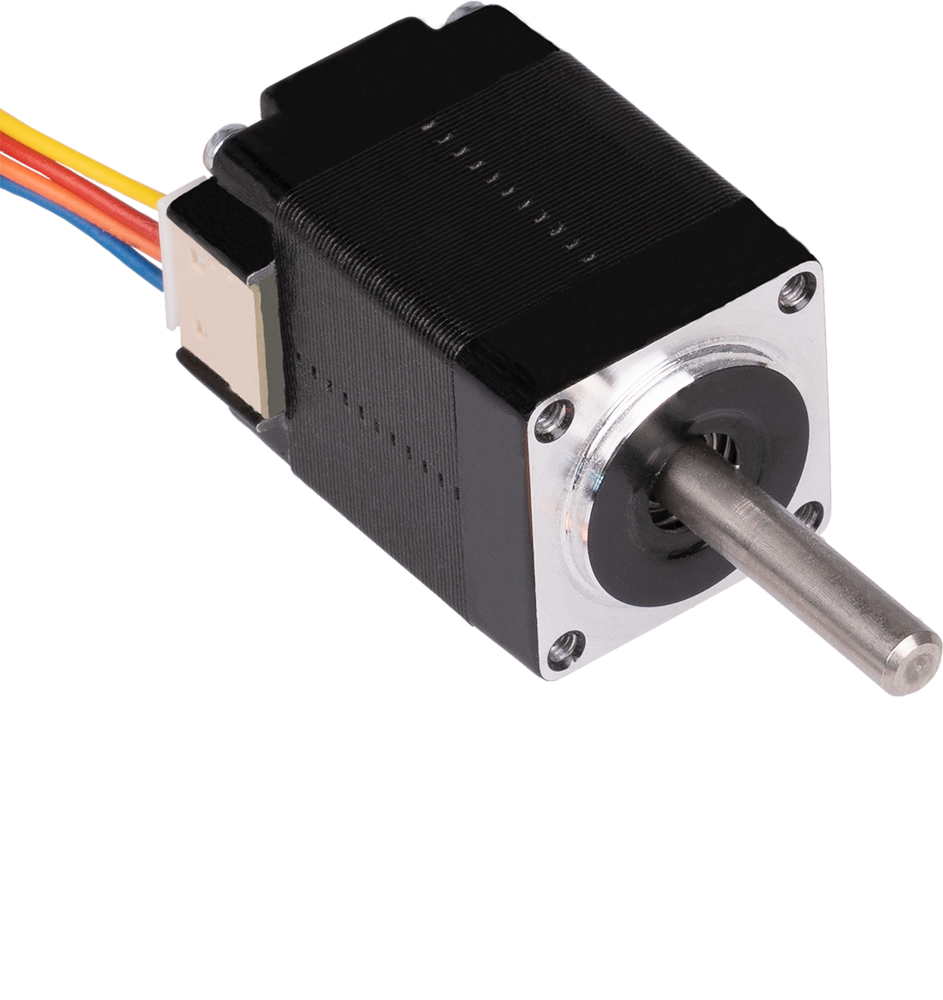

NEMA 8 stepper motor

Our NEMA 8 series are very small high torque stepper motors that can reach up to 3000 rpm.These motors are used in the model making and maker scene as well as in the industrial environment (e. g. positioning of optics, dosing pumps, interlocks, etc.).Shaft dimensionsØ 4 x 18.5 mmConnection6 pin JST socketCable Length400 mmHolding torque16 mNmRated voltage3.9 VRated current0.6 AStep angle1.8 ° ±5 %Number of Phases2Phase resistance6.5 ΩPhase inductivity1.7 mHIsolation resistance100 MΩ min. @500V DCIsolation classB (130°C)Rotational inertia2 g·cm²Detent torque18 mNmpermitted operating temperature-10 to 50 °CDimensions20 x 22 x 30 mmWeight60 gItems ShippedNEMA 8 stepper motor, connection cableEAN4250236821665Article No.NEMA08-01
