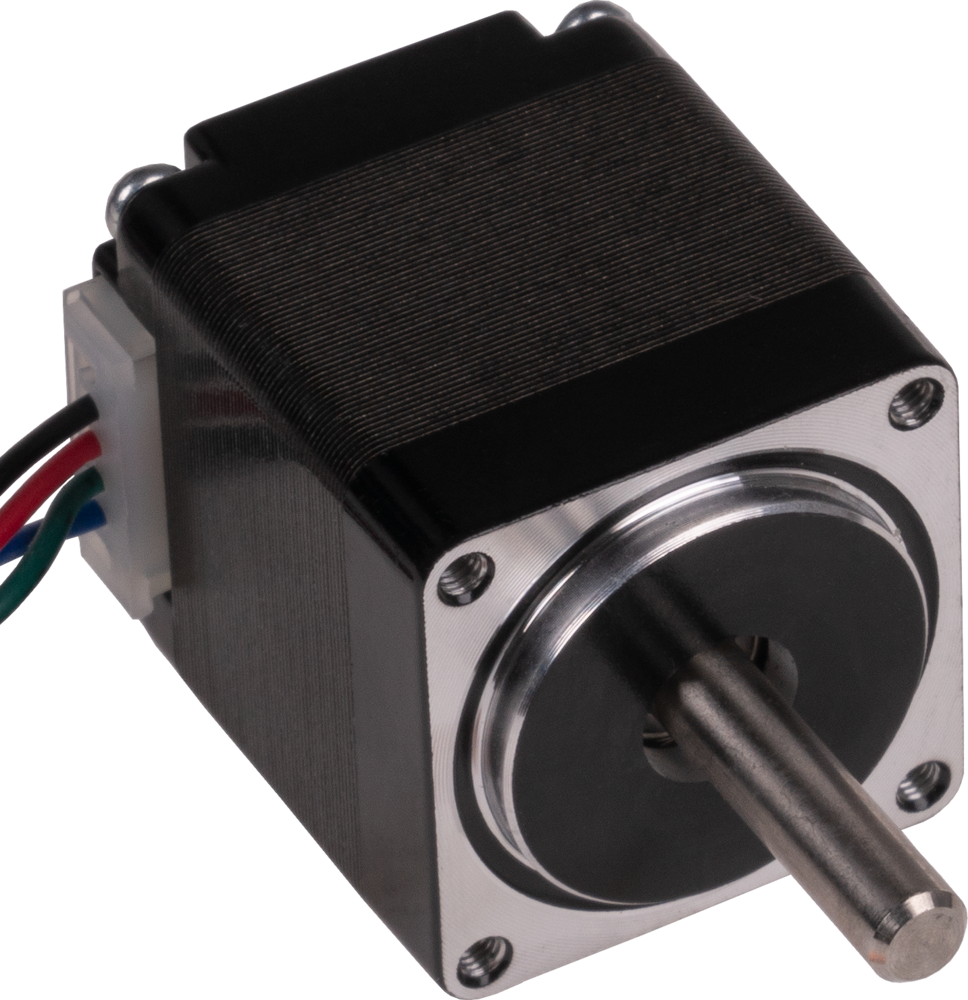

NEMA 11 stepper motor

Our NEMA 11 series are very small high torque stepper motors that can reach speeds of up to 3000 rpm.These motors are often used in the model making and maker scene as well as in the industrial environment (Positioning of optics, dosing pumps, interlocks, etc.).Shaft dimensionsØ 5 x 18 mmConnection4 cablesHolding torque55 mNmRated voltage5.0 VRated current0.42 AStep angle1.8 ° ±5 %Number of Phases2Phase resistance11.9 ΩPhase inductivity7.8 mHIsolation resistance100 MΩ min. @500 V DCIsolation classB (130°C)Rotational inertia9 g·cm²Detent torque5 mNmpermitted operating temperature-10 to 50 °CDimensions28 x 29 x 32 mmWeight120 gItems ShippedNEMA 11 stepper motor, connection cableEAN4250236821719Article No.NEMA11-01
