LCD Display 3.2"

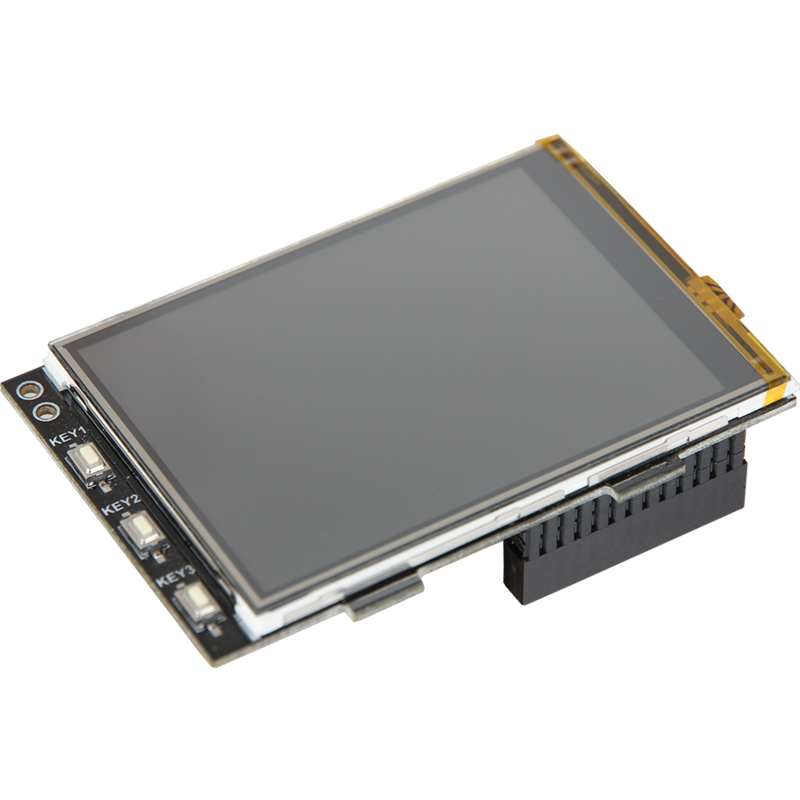

3.2" DISPLAYWith the 3.2 Inch TFT Touchscreen-Display you can easily build a Mini-Tablet-PC based on an Raspberry Pi.The display, with a maximum resolution of 320x240 pixels, can be attached to the GPIO connections so that you won‘t need any mounting-skills.The Display offers 3 free programmable buttons.SPECIFICATIONSDISPLAY3.2" (8.13cm)TOUCHSCREEN CONTROLLERXPT2046RESOLUTION320x240 PixelTOUCHSCREEN TECHNOLOGYResistive Touch Screen, Single-TouchIC DRIVERSSD1289COLORS65.536BRIGHTNESS350 cd/mINTERFACESPIOPERATING TEMPERATURE0 - 70°CVIEWING ANGLEHorizontal: up to 45°, Vertical (Top): up to 45°, Vertical (Bottom): up to 20COLORBlackSPECIAL FEATURESLED backlight, can be plugged directly onto the GPIO header, 3 freely assignable buttons: connected to GPIO12, GPIO16 & GPIO18COMPATIBLE TORaspberry Pi A, B, B+, 2B, 3B, 3B+, 4BDIMENSIONS85 x 20 x 60mmWEIGHT52 gITEMS SHIPPED3.2" display module, stylus
