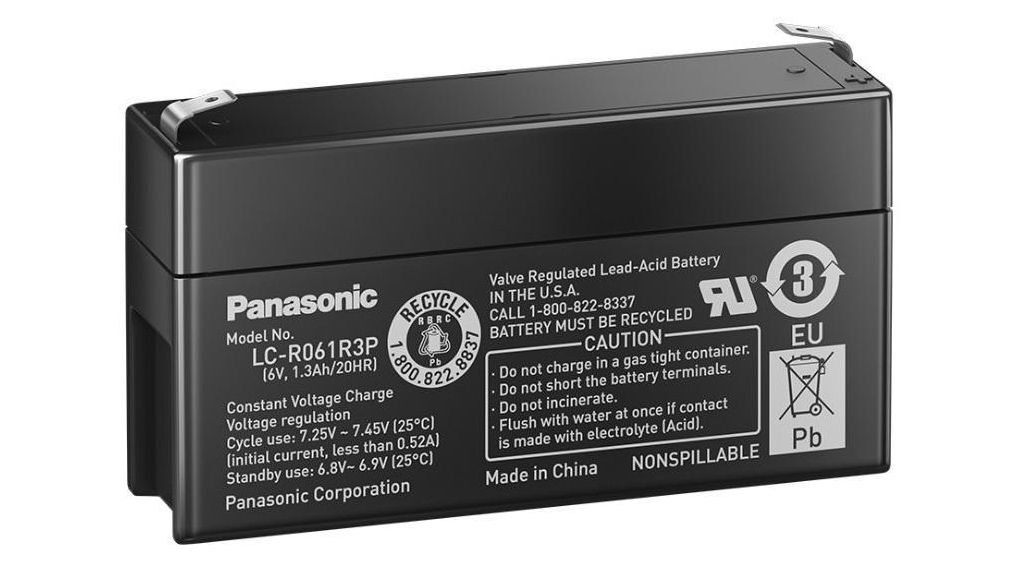

Bly-Acid Genopladelig, 6V, 1,3 Ah

Construction• Positive and negative electrodes made of a lead-tin-calcium alloy.• The fiber glass separators contain high acid resistancy and low electric conductivity.• A security valve (response pressure 1 to 6Psi) allows excess gas to escape and stabilizes the optimal inside pressure.• The ABS leak-proof rechargeable battery case allows application in any position.Features• Absolute maintenance-free• Sealed, leak-resistant structure• Expected Design Life: 6 to 9 years• Operates in any position• Fast charging capacity• High energy densityTechnical Specifications       Part Nr.Panas.-Des.UNCNC10C5C1 LC-_[V][Ah][Ah][Ah][Ah]LCR1,3-6R061R3PG61,31,21,050,85LCR3,4-6R063R4P63,43,02,72,1LCR4,5-6R064R5P64,54,03,62,8LCR7,2-6R067R2P67,26,86,34,9LCR12-6R0612P612,011,310,48,1LCR12-6FR0612P1612,011,310,48,1UN = Rated Voltage, CN = Rated Capacitance = Discharging Over 20h, C10 = Discharging Over 10h, C5 = Discharging Over 5h, C1 = Discharging Over 1hTrickle Charge SystemSuitable charging voltage 6,8 to 6,9V; without limiting charging current.Charging Method for Operating CyclesSuitable charging voltage 7,25 to 7,45V; starting charging current must be limited to maximum 0,4C (constant charging voltage).Dimensions       Part Nr.LWHHges.WeightTerminal [mm][mm][mm][mm][kg] LCR1,3-6972450550,3F1LCR3,4-61343460660,62F1LCR4,5-670481021080,72F1LCR7,2-615134941001,26F1LCR12-615150941001,95F1LCR12-6F15150941001,95F2Hges. = Height with TerminalsApprovals RecyclingAll used lead batteries must be given to an environmentally-friendly waste bank for disposal in accordance with local regulations.Do not dispose of used batteries in domestic waste! Manufacturer http://www.panasonic-industrial.com

• Kategori: 222
