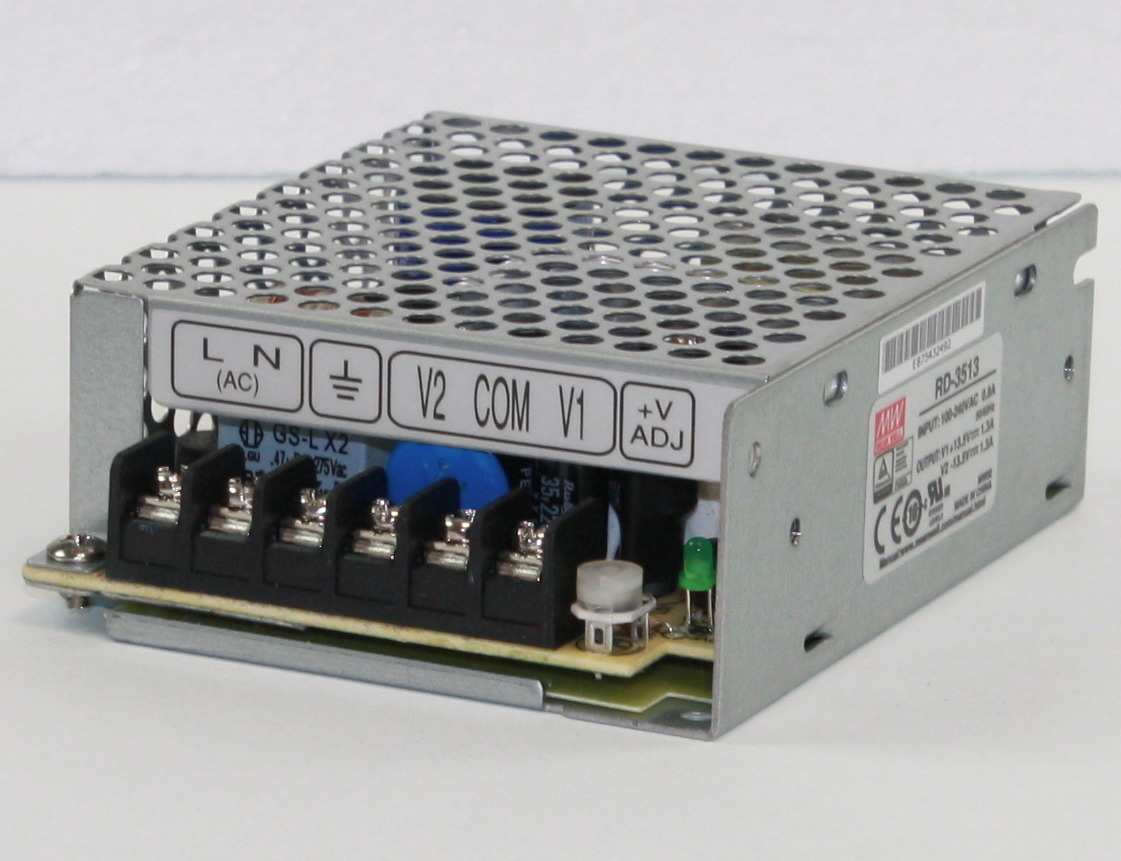

SPS Case 35W +13,5/-13,5V

Gruppe: L6124MEANWELL Switching Power SuppliesSeries: RD-35Case, Dual OutputOutput: 32 to 35WFeatures• Enclosed case, screw terminals• Universal input• Overload protection, pulsing hiccup shutdown, auto recovery• Protections: short circuit/over load/over voltage• Long life 105°C electrolytic capacitorsTechnical SpecificationsInput Voltage:88...264V AC (47...63Hz)125...373V DCInput Inrush Current, Max.:36ALeakage Current, Max.:2mAOver Load Protection:110...150%Withstand VoltageI/P-O/P:3000V ACI/P-FG:1500V ACO/P-FG:500V ACOperating Temperature:-25...+70°CWeight:300gI/P = Input, O/P = Output, FG = Frame GroundPart Nr.UAIAPA1)UadjDUAURNh [V][A][W][%][%][mVp-p][%]RD-35A50,3...432+10/-528079 120,2...1  6120 RD-35B50,3...435+10/-528082 240,2...1,3  5120 RD-351313,50,3...235,1±15412080 -13,50,2...1,5  4120 UA = Output Voltage, IA = Output Current Range, PA = Output Power, Uadj = Output Voltage Adjustment, DUA = Output Voltage Tolerance, URN = Ripple & Noise, h = Efficiency, 1) The Sum of the Power Used by the Individual Channels Must Not Exceed the Total Power Rating.NoteYou will find installation material in product group L6911.Labelling Terms of DeliveryMinimum order quantity: 1 PKU = 1 pieceManufacturer http://www.meanwell.com
