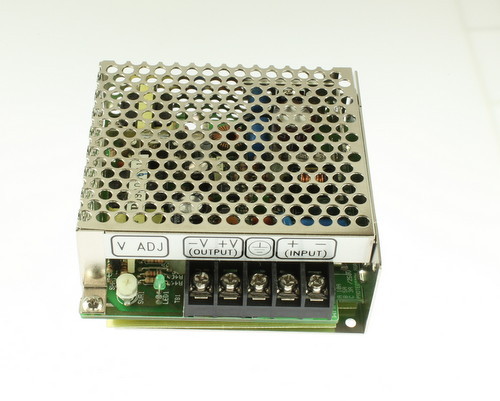

DC/DC-Conv 9,2-18V:5V 5,0A 25W

Gruppe: L8515MEANWELL DC/DC ConvertersSeries: SD-25Case, Single OutputInput Voltage Ratio: 2:1Output: 25 to 26WFeatures• Enclosed case, screw terminals• Overload protection, pulsing hiccup shutdown, auto recovery• Wide input voltage range 2:1• DC decoupling of input and output• Input/output insulation 1500V• Regulated output voltage• Short-circuit proofTechnical SpecificationsInput Voltage:See TableOver Load Protection:105...150%Withstand VoltageI/P-O/P:1500V ACI/P-FG:1500V ACO/P-FG:500V ACOperating Temperature:-10...+60°CWeight:380gI/P = Input, O/P = Output, FG = Frame GroundPart Nr.UEUAIAPAUadjDUAURNhSD-_[V][V][A][W][V][%][mVp-p][%]25A-59,2...1850...5254,5...5,521007125A-129,2...18120...2,125,211...1611207225A-249,2...18240...1,126,423...3011507525B-519...3650...5254,5...5,521007225B-1219...36120...2,125,211...1611207525B-2419...36240...1,126,423...3011507825C-536...7250...5254,5...5,521007425C-1236...72120...2,125,211...1611207825C-2436...72240...1,126,423...30115081UE = Input Voltage, UA = Output Voltage, IA = Output Current Range, PA = Output Power, Uadj = Output Voltage Adjustment, DUA = Output Voltage Tolerance, URN = Ripple & Noise, h = EfficiencyLabelling Terms of DeliveryMinimum order quantity: 1 PKU = 1 pieceManufacturer http://www.meanwell.com

• Kategori: 222
