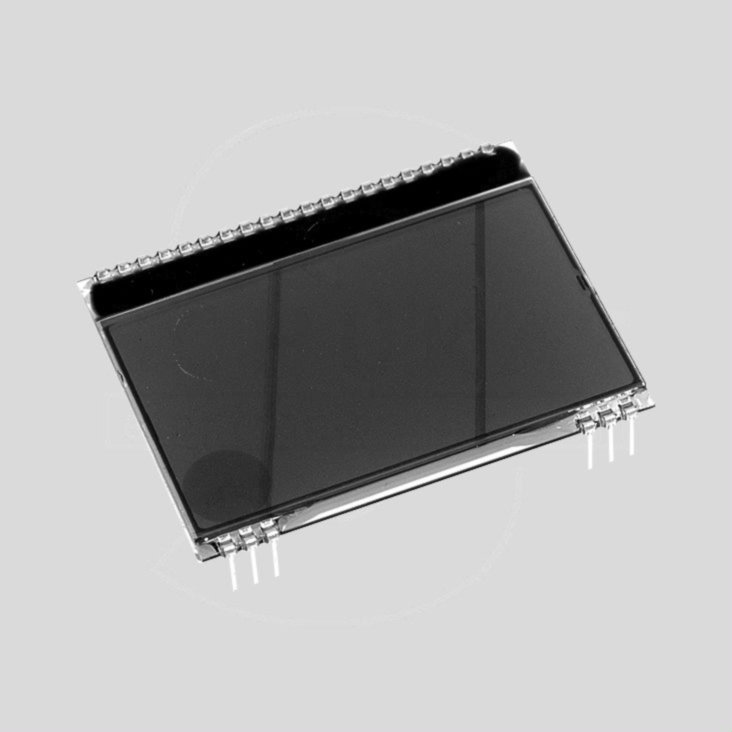

LCD-Graphicm 51,0x31,0mm 128x64 White CO

Gruppe: W6258ELECTRONIC ASSEMBLY LCD-Graphic-Modules FSTN Monochrome COGSeries: EADOG_Background: Dependent on BacklightPixels: BlackTechnical Specifications• High contrast LCD-FSTN display COG• super flat: only 5,8mm resp. 6,5mm with LED backlight• 4-Wire SPI interface• Plug-in easily to a socket connector or solder directly into a PCB• Only one supply voltage, typ. +3,0...3,3V resp. 2,4...3,3V• Operating temperature range -20...+70°CEADOG_TypeFormatV-AreaLxWxD  [HxV][mm][mm]L128W-6FSTN128x6464,0x35,567,8x48,3x2,8M128W-6FSTN128x6451,0x31,055x43,2x2,0M132W-5FSTN132x3251,0x15,055x28x2,0FSTN = Film Super Twisted Nematic, H = Horizontal (Pixel), V = Vertical (Pixel), V-Area = Viewing AreaEADOG_P-SizeBacklB-ColourTamb [mm]  [°C]L128W-60,46x0,50Optional--20...+70M128W-60,36x0,42Optional--20...+70M132W-50,35x0,40Optional--20...+70P-Size = Pixel Size, Backl = Backlight, B-Colour = Backlight Colour, Tamb = Ambient Operating TemperatureNoteYou will find suitable LED backlights in product group W6267.Terms of DeliveryMinimum order quantity: please see price list column "MOQ".Manufacturer http://www.lcd-module.de
