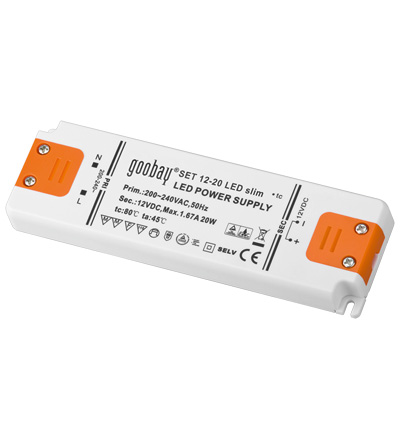

LED driver, 12VDC 0,5-20W

 DC current source for LEDs with electronic ballast unitflat design for space-saving installationapproved for installation in furnituresafe electronic separation as per protection class IIconstant output voltage for parallel cicuits  Technical specificationsPerformancemax. performance20 W Dimmabilitynot dimmable Standby power consumption0.5 W Device connectionsnumber of inputs2 pcs. Number of outputs2 pieces Input Cross Section0.75 mm² Input, Voltage Range200 - 240 (AC) V Input, typeScrew clamp Output, max. amperage1.67 A Output Cross Section0.75 mm² Output, typeScrew clamp Output, voltage12 V (DC) Output, max. amperage1670 mA GeneralConsumption Unit1 pc. in cardboard box protection classIP20 Appliance ClassII Colororange, white MarkingsBauartgeprüft: Tüv Rheinland, CE, WEEE Operating temperature from-20 °C Operating temperature up to45 °C Length103 mm Width35.5 mm Height16 mm Weight55 g
