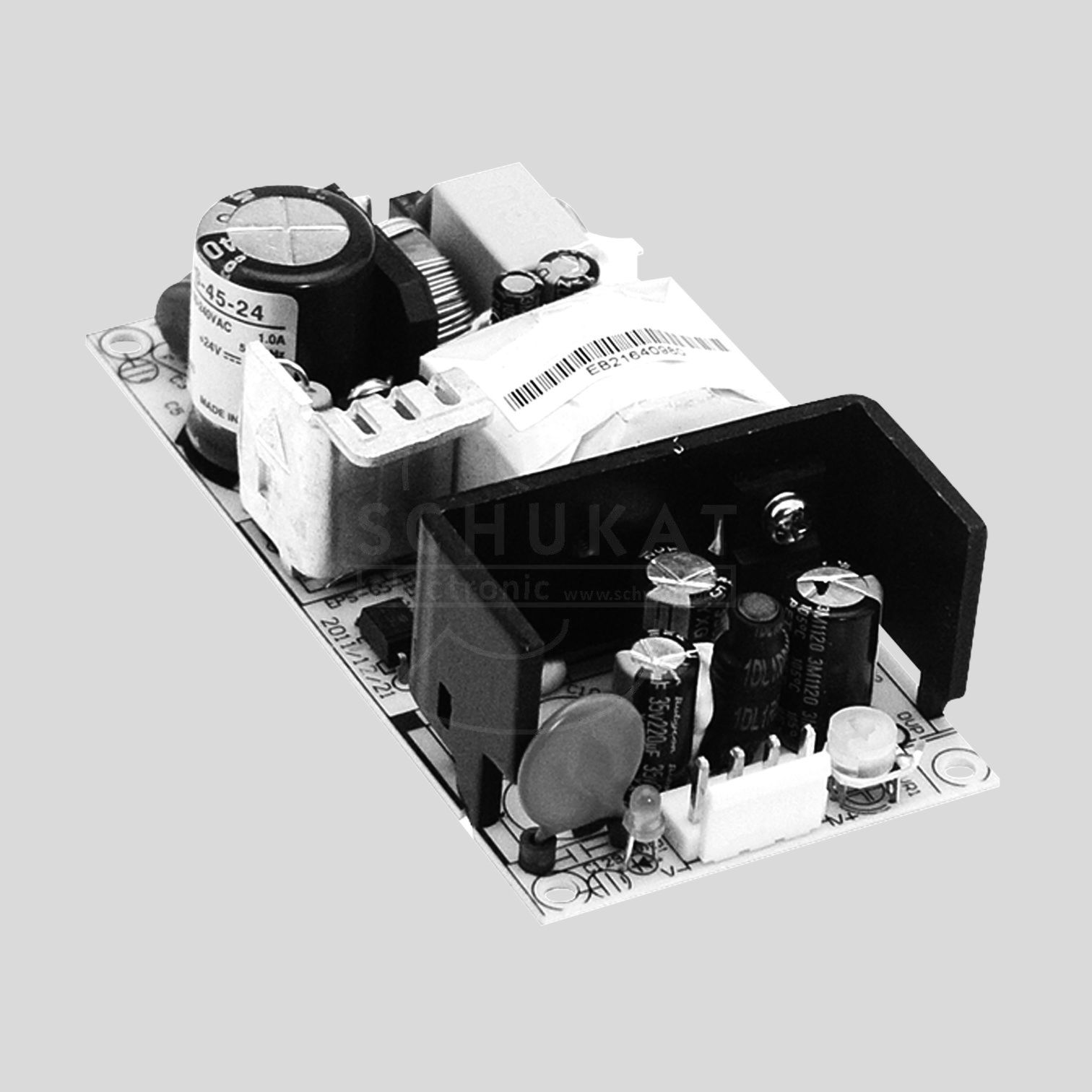

SPS Open Frame 40W PFC 5V/8A

GROUP:L7134Gruppe: L7134MEANWELL Switching Power SuppliesSeries: EPS-45Open Frame, Single OutputOutput: 26 to 48WFeatures• Open frame• Compact case, 4" x 2"• Contact pin for nylon-crimp terminals• Universal input• Overload protection, pulsing hiccup shutdown, auto recovery• Protections: short circuit/over load/over voltage• Low no load power consumptionTechnical SpecificationsInput Voltage:90...264V AC (47...63Hz)127...370V DCInput Inrush Current, Max.:60ALeakage Current, Max.:2mAOver Load Protection:115...160%Withstand VoltageI/P-O/P:3000V ACI/P-FG:1500V ACO/P-FG:500V ACOperating Temperature:-30...+70°CWeight:140gI/P = Input, O/P = Output, FG = Frame GroundPart Nr.UAIAPADUAURNh [V][A][W][%][mVp-p][%]EPS-45-3.33,30...826,438080EPS-45-550...84028082EPS-45-7.57,50...5,440,5210084EPS-45-12120...3,7545212087EPS-45-15150...345215088EPS-45-24240...1,945,6124089EPS-45-36360...1,2545128089EPS-45-48480...148130090UA = Output Voltage, IA = Output Current Range, PA = Output Power, DUA = Output Voltage Tolerance, URN = Ripple & Noise, h = EfficiencyNoteYou will find suitable crimp housings in product group F1445.Labelling Terms of DeliveryMinimum order quantity: 1 PKU = 1 pieceManufacturer http://www.meanwell.com
