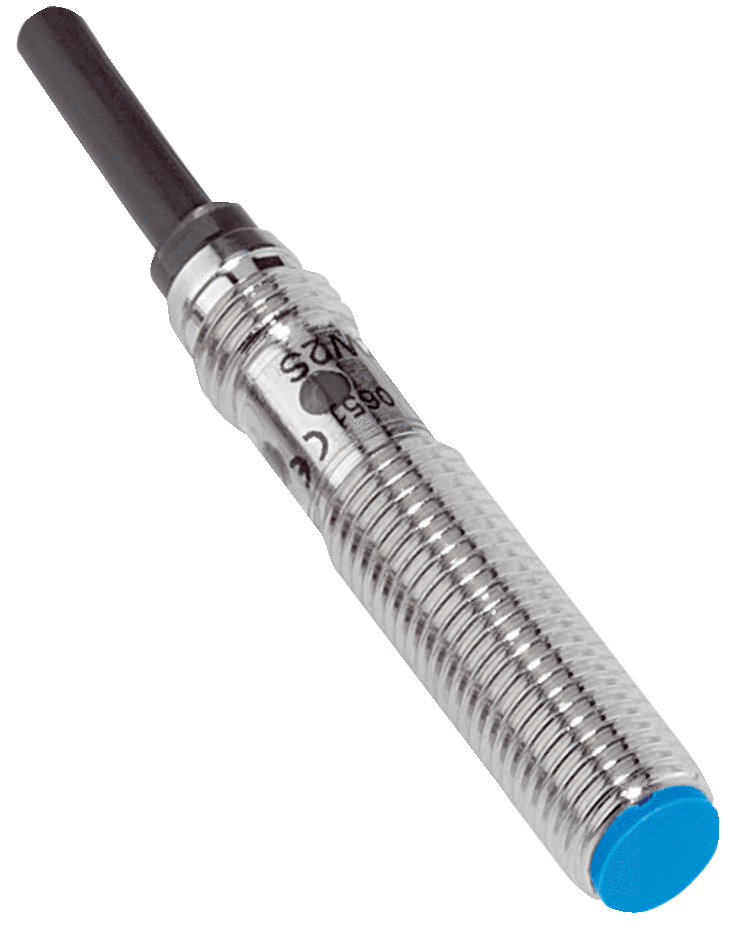

Induktiv sensor. PNP-udgang. Med 2m ledning.

FeaturesHousingCylindrical thread designshort-bodyThread sizeM8 x 1DiameterØ 8 mmSensing range Sn2 mmSafe sensing range Sa1.62 mmInstallation typeFlushSwitching frequency4,000 HzConnection typeCable, 3-wire, 2 mOutput typePNPOutput functionNOElectrical wiringDC 3-wireEnclosure ratingIP 67 1)1) According to EN 60529.Mechanics/electronicsSupply voltage10 V DC ... 30 V DCRipple≤ 10 %Voltage drop≤ 2 V 1)Current consumption≤ 10 mA 2)Time delay before availability≤ 100 msHysteresis5 % ... 15 %Repeatability≤ 2 % 3) 4)Temperature drift (of Sr)± 10 %EMCAccording to EN 60947-5-2Continuous current Ia≤ 200 mACable materialPVCShort-circuit protection✔Reverse polarity protection✔Power-up pulse protection✔Shock and vibration resistance30 g, 11 ms/10 Hz ... 55 Hz, 1 mmAmbient operating temperature–25 °C ... +75 °CHousing materialMetal, Nickel-plated brassSensing face materialPlastic, PlasticHousing length43 mmThread length25 mmTightening torque, max.Typ. 5 NmUL File No.NRKH.E1814931) At Ia max.2) Without load.3) Ub and Ta constant.4) Of Sr.Reduction factorsNoteThe values are reference values which may varySt37 steel (Fe)1Stainless steel (V2A, 304)Approx. 0.8Aluminum (Al)Approx. 0.45Copper (Cu)Approx. 0.4Brass (Br)Approx. 0.4Installation noteRemarkAssociated graphic see "Installation"B16 mmC8 mmD6 mmF16 mmClassificationsECl@ss 5.027270101ECl@ss 5.1.427270101ECl@ss 6.027270101ECl@ss 6.227270101ECl@ss 7.027270101ECl@ss 8.027270101ECl@ss 8.127270101ECl@ss 9.027270101ETIM 5.0EC002714ETIM 6.0EC002714UNSPSC 16.090139122230
