AM2315 I2C TEMPERATURE & HUMIDITY SENSOR

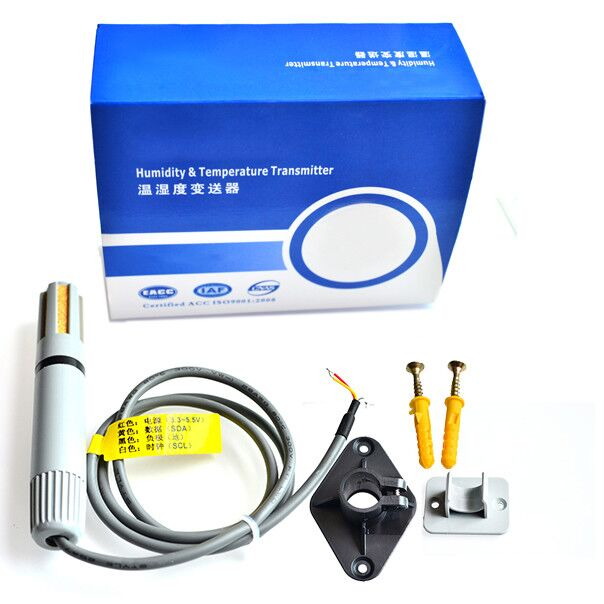

AM2315 I2C TEMPERATURE & HUMIDITY SENSORThe Aosong AM2315 is a wall mountable temperature and humidity sensor (HCSENS0043) based on the AM2315 capacitive digital sensor. It provides a two wire digital I2C output suitable for interfacing to most 3.3V and 5V microcontrollers and can be powered from a 3.5V to 5.5V (5V recommended) power supply. The sensor is encased in a durable ABS plastic case and comes supplied with 2x wall brackets for both horizontal or vertical location (includes fixing screws and wall plugs). Specification:Product code: HCSENS0043Supply Voltage: 3.5 to 5.5V (5V recomended)Interface: 2 wire I2C (SDA, SCL) interface (external pullups required)Temperature resolution: 0.1 oCTemperature Accuracy: +/-1 oC (Max)Temperature range: -40 to 125 oCHumidity resolution: 0.1 %RHHumidity Accuracy: +/-2 %RHSensor Length: 97.4mmSensor Diameter:15.8mm
