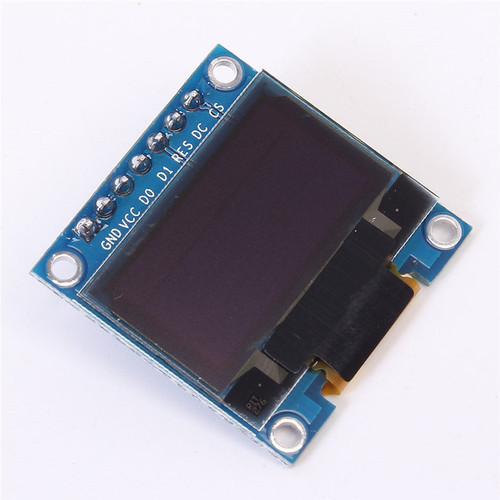

SSD1306 128X64 PIXEL UOLED DISPLAY MODULE (BLUE)

SSD1306 128X64 PIXEL UOLED DISPLAY MODULE (BLUE)This tiny 0.96 inch OLED display has a resolution of 128 x 64 pixels and uses a standard (configurable) serial interface for communication. Based on the SSD1306 controller, the module is available in both white and blue pixel colours. By default the module is configured to use an SPI interface for serial interface but can be modified (soldering required) to communicate via I2C protocol (see note). Pre-written libraries for Arduino are freely available.NOTE: The module can be configured to communicate with I2C (two wire) master devices by re-soldering resistor S2 to the 1 position (see reverse side of module). However in I2C mode this module does not respond to I2C writes with an ACK and therefore your code should be configured to ignore NACK responses. Features:Module size: 27.3*27.8mmHigh pixel densityResolution: 128X64 Super wide viewing angle: more than 160°Ultra-low power consumption: normal display 0.06W (far below the TFT display)Wide supply range: DC 3V-5V (without any changes, directly compatible with common 3.3V and 5V power supply system)Industrial grade: Operating temperature range -30 C ~ 70 CUltra-small size: (length) 27.8MM * (W) 27.3MM * (thickness) 4.3MMChip select CS signal allows for multiple SPI or IIC devices on the same bus.Compatible tolerant interface.OLED screen, internal drive chip: SSD1306
