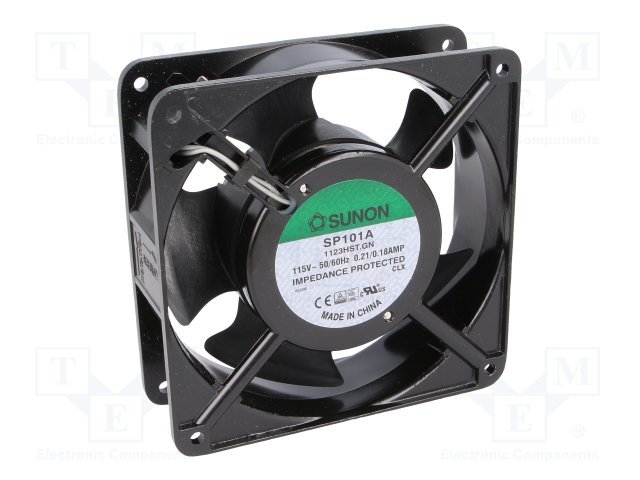

Fan 115V 120x38 S T 144m³/h 43dBA 20W

Design  Motor:Shaded-Pole Motor, Impedance ProtectedFrame:Aluminium Spray CastImpeller:Filled Thermoplastic PBT (UL94V-0)Connection Type:See Table BelowTechnical Specifications  Rated Voltage: SP101A1123HST:115VDielectric Strength at 65% r. F.:1800V AC for 1 Min.Insulation Resistance at 500V DC:>500MOhmStorage Temperature:-40...+70°COperating Temperature:-10...+70°C        Part Nr.BearingTerminalPAirflowNoiseIPelSpeed TypeType        [m3/h][dBA][A][W][RPM]A2123HSTST161,36440,14232700A2123HST-7ST190,24430,14242500A2123HBTBT164,76450,14232700A2123HBT-7BT190,24440,14242500A2123HSLSL161,36440,14232700A2123HSL-7SL190,24430,14242500A2123HBLBL164,76450,14232700A2123HBL-7BL190,24440,14242500SP100A1123XSTST161,40440,26222700DP200A2123XSTST161,40440,14222700SP100A1123XBTBT164,76450,26222850DP200A2123XBTBT164,76450,14222850DP200A2123XSLSL161,37440,14222700DP200A2123XBLBL164,76450,14222850SP101A1123HSTST144,38430,21202550DP201A2123HSTST144,38430,125202550DP201A2123HBLBL147,77450,125202750DP201A2123HBTBT147,78450,125202750DP203A2123LSTST118,9360,06112000DP203A2123LBTA24BT93,42280,07141700SF1212AD-BLBL161,37440,1319,53000(115V) L161,37440,2721,52600All Specs Valid for 230V, 50Hz; PAirflow = Airflow ±10%, Pel = Rated Power and Current Tolerance ±10%, S = Sleeve Bearing, B = Ball Bearing, T = Terminal (2,8x0,5mm), L = Lead Wires, AWG24, TinnedNoteThe frame is grounded by a M4 screw, drilled frames available.The SF1212AD-BL fans are connected according to connection diagram.LabellingApprovals Terms of DeliveryMinimum order quantity: 1 PKU = 1 pieceNoteFans with half the power consumption for the same airflow can be found in product group K6433. The fans are connected with an integrated terminal by a fan cable, see product group K9612. General information about the A, MA, SF, SP, DP series can be found here.
