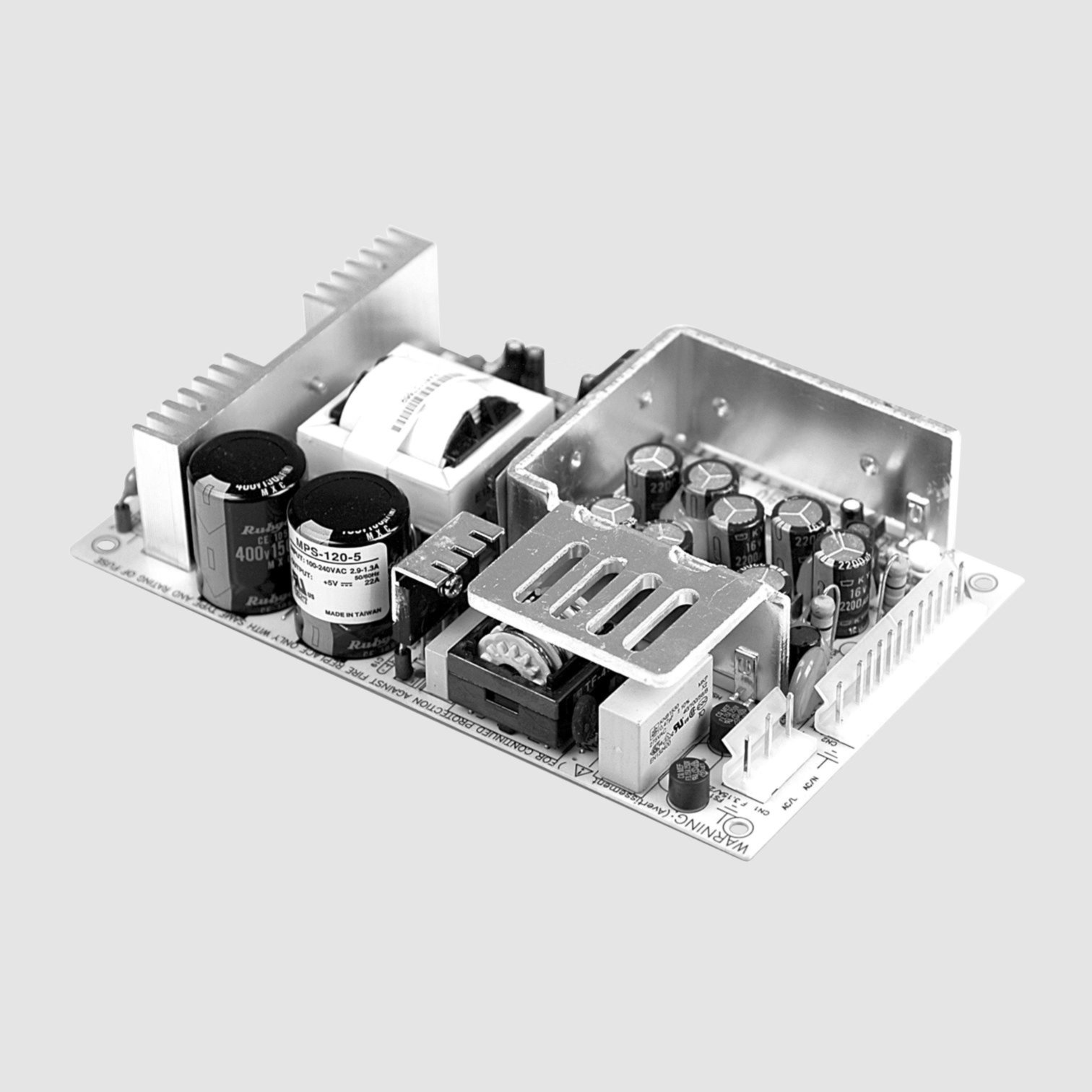

SPS Medical 73W 5V/14,7A

Gruppe: L7541MEANWELL Switching Power SuppliesSeries: MPS-120Open Frame, Medical, Single OutputOutput: 52 to 81WFeatures• Open frame• Contact pin for nylon-crimp terminals• Universal input• Overload protection, pulsing hiccup shutdown, auto recovery• Protections: short circuit/over load/over voltage• EN60601-1 compliantTechnical SpecificationsInput Voltage:90...264V AC (47...440Hz)127...370V DCInput Inrush Current, Max.:45ALeakage Current, Max.:0,18mAOutput Voltage Adjustment:+10/-5%Over Load Protection:120...160%Withstand VoltageI/P-O/P:4000V ACI/P-FG:1500V ACO/P-FG:500V ACOperating Temperature:-20...+70°CWeight:550gI/P = Input, O/P = Output, FG = Frame GroundPart Nr.UAIAPADUAURNh [V][A][W][%][mVp-p][%]MPS-120-3.33,30...1652,838068MPS-120-550...14,773,538073MPS-120-12120...6,780,4210077MPS-120-15150...5,379,5210079MPS-120-24240...3,379,2212081MPS-120-48480...1,781,6212082UA = Output Voltage, IA = Output Current Range, PA = Output Power, DUA = Output Voltage Tolerance, URN = Ripple & Noise, h = EfficiencyNoteYou will find suitable crimp housings in product group L7611.Labelling Terms of DeliveryMinimum order quantity: 1 PKU = 1 pieceArticles in bold print in stock, other articles of 1 piece upwards available on request, delivery time approx. 14 weeks.Manufacturer http://www.meanwell.com
