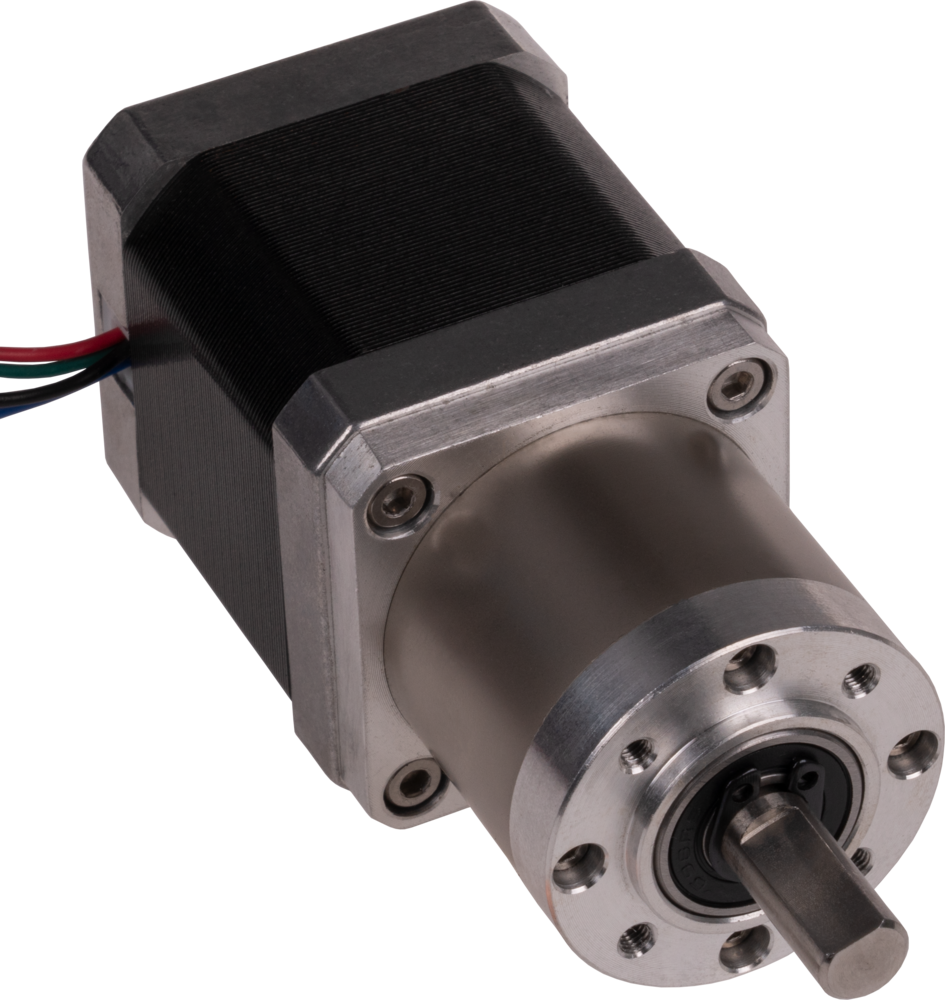

NEMA17 Planetary Gearbox stepper motor

Our NEMA 17 series are very small high torque stepper motors that can reach speeds of up to 3000 rpm.This compact stepper motor with a 19.2 :1 transmission gearing is suitable for applications in which you require a precise and powerfully working stepper motor.This stepper motor can be optimally used for tasks in the areas of Automation, CNC (f. e. engraving lasers, 3D printers, milling machines, etc.), or robotic.Gear reduction ratio19.2 :1Shaft dimensionsØ 8 x 18 mm (7mm flat spot)Connection4 cablesHolding torque0.44 NmRated voltage3.11 VRated current1.68 AStep angle1.8 ° ±5 %Number of Phases2Phase resistance1.85 ΩPhase inductivity2.8 mHIsolation resistanceMin. 100 MΩ @500 V DCIsolation classB (130°C)Rotational inertia38 g·cm²Detent torque0.02 NmPermitted operating temperature-10 to 50 °CDimensions42 x 42 x 83 mmWeight550 gItems ShippedNEMA 17 gear stepper motor, connection cableEAN4250236821740Article No.NEMA17-07GM
