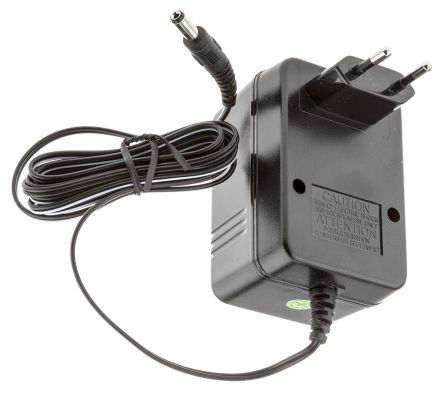

Transformer Euro Plug 24Vac 800mA

Mechanical specification: PSU housing: Colour: black Flammability rating: UL94V-0 Output lead: Type: UL2468 20AWG Length: 1750mm Output connector: 2.1x5.5x12mmElectrical specification @ 230V, 50Hz: Input: 230/240V, 50/60Hz Maximum no load primary current: 55mA Input current at full load: 130mA maximum Output voltage (+/-5%) Open circuit: 27.5V Full load: 24.0V Maximum output current: 800mA Hi-pot, primary to secondary: 3.75kVRMS for 60 seconds Leakage current: 0.25mA max. @ 264VAC, 50Hz Insulation breakdown, primary to secondary @ 500VDC: 100M ohms Induced voltage: primary will withstand 440VAC, 400Hz for 15 seconds (secondary disconnected)
