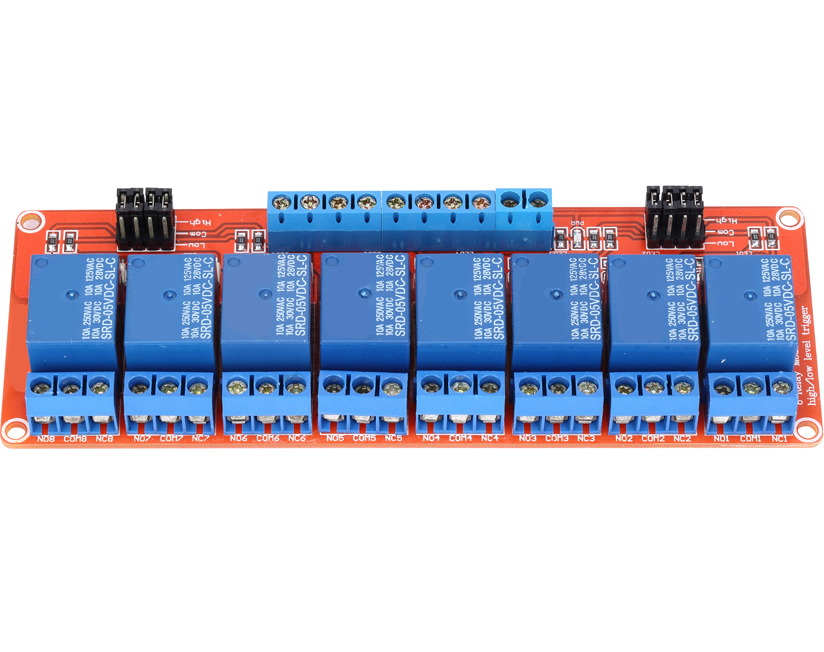

5V 8 Channel Relay Module Supportthe high and low level trigger

Description1, the module uses genuine quality relay, normally open interfaces Maximum load: AC 250V / 10A, DC 30V / 10A;2, SMD optocoupler isolation, strong driving ability, stable performance; trigger current 5mA;3, the module voltage 5V4, each channel module can be set high or low triggered by jumper;5, fault-tolerant design, even if the control line is broken, the relay will not operate;6, power indicator (green), 8 relay state indicator (red)7, interface design user-friendly, all interfaces are available through the wiring terminal direct connection leads, very convenient8, module size: 141.5mm * 50mm * 18.5mm (L * W * H)9, has 4 mounting bolts holes, hole 3.1mm, spacing 136mm * 44.5mmFeatures:1.Dual trigger design, use a dedicated two-way driver IC.2.Strong resist interference, use diode continued current to protect it.3.The relay contact part adopts double cloth line for large current, safe and reliable.4.The input and output are 5.08mm wiring terminals, wiring is more convenient, suitable for PLC control.5.Input terminals can be arbitrarily set high and low level, the control mode is more flexible.6.Equipped with fixing screw hole, easy to install.7.Each way module can be set high or low triggered by jumper.Specifications:Size: 141.5mm * 50mm * 18.5,Material: MetalMounting bolts holes: 4Holes diameter: 3mmVoltage: 5vMaximum load : AC 250V/10A, DC 30V/10AInterface:VCC: Power endGND: Ground strapCTR1-CTR8: Signal input triggerOutputs:24 line interface, the interface can be directly connected to all leads , user-friendly.NO1-NO8: normally open relay interfaces , relay before the vacant after the pull shorted with COMCOM1-COM8: Relay Common InterfaceNC1-NC8: normally closed relay interface relay shorted with COM ago , after the pull- vacantPackage Included:1x 8 Channel Relay Module
