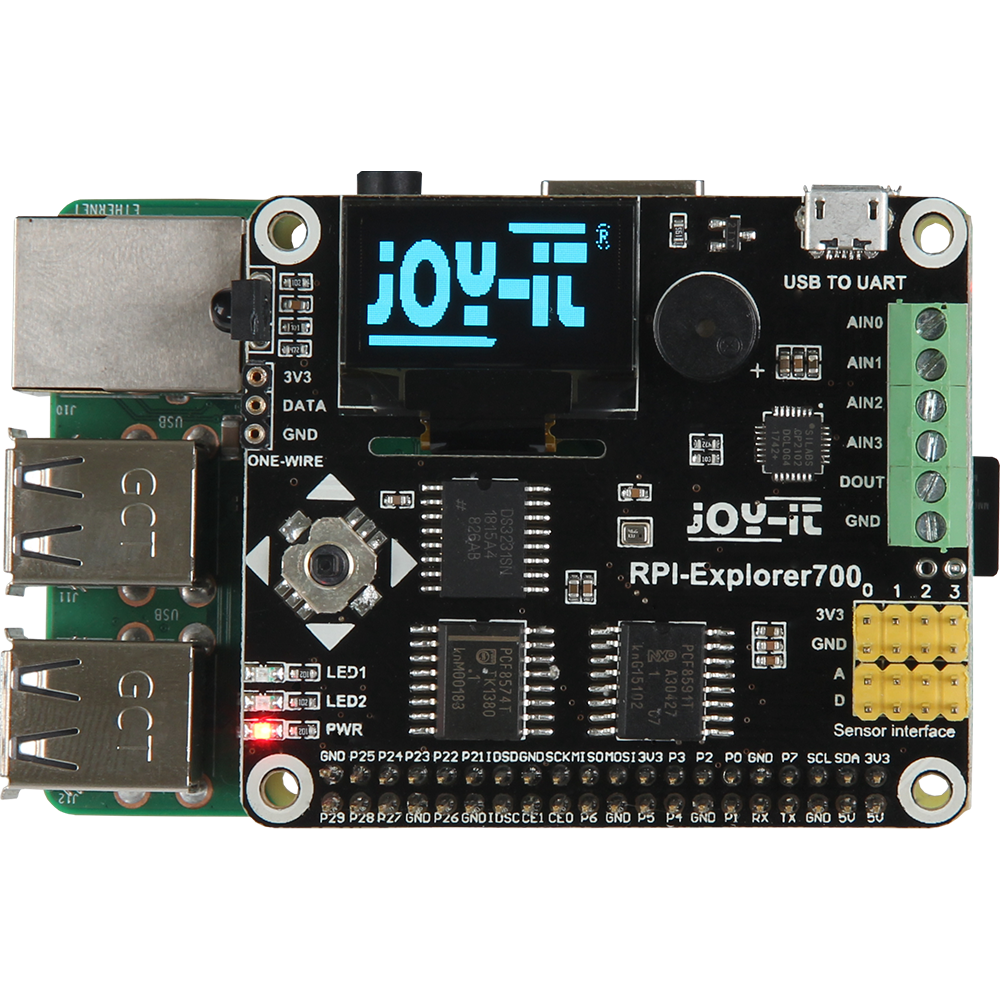

Explorer 700 HAT til Raspberry Pi B+, 2B, 3B

The Explorer 700 multifunctional board is a allrounder. It has many usable interfaces and interesting expansions:Pin-Header to put directly on the Raspberry B+, 2B or 3BUART interface: connect easily UART modules like for example RS232, RS485, USB to UART (TTL-cable)AD/DA IO interface: connected cable via screws definable1-WIRE interface: to connect a 1-WIRE device (for example DS18B20 chipset, seperatly in scope of delievery)sensor interface: digital and analog sensors can be connected0.96 inch OLED display: SSD1306 Driver, 128 x 64 Pixel, SPI interfaceBuzzerUSB to UART, converter with CP2102 chipset (mini USB-Port)PCF8591: 8-bit analog / digital converter, I²C interfaceBMP180: sensor for atmospheric pressure, temperature and height over normal zero, I²C interfacePCF8574: I/O Chip for I²C interfaceDS3231: high precision RTC chip, I²C interfacePower LEDProgrammable LEDJoystickLFN0038K IR infrared receiverThe Explorer 700 board is compatible to Raspberry models B+, 2B, 3B, 3B+, 4B.ModelExplorer700 Expansion BoardInterfacesUART, AD/DA: connected cables can be fixed with screws, 1-Wire, SensorDisplay0.96“ OLED Display (SSD1306 Driver, 128x64 Pixel)Other functionsPin-Header for direct plugging, Buzzer, USB to UART Converter, PCF8591 8-Bit Analog/Digital Converter, BMP280 Barometer, PCF8574 I/O Chip, DS3231 Real Ti-me Clock, Programmable LED, Joystick, LFN0038K Infrared ReceiverCompatible toRaspberry Pi 4B, 3B+, 3B, 2B, B+Dimensions85 x 56 x 17 mmWeight30 gItems ShippedExplorer 700 Expansionboard, DS18B20 1-Wire Temperature Sensor, Spacers and NutsEAN4250236813332Article No.RB-Explorer700
