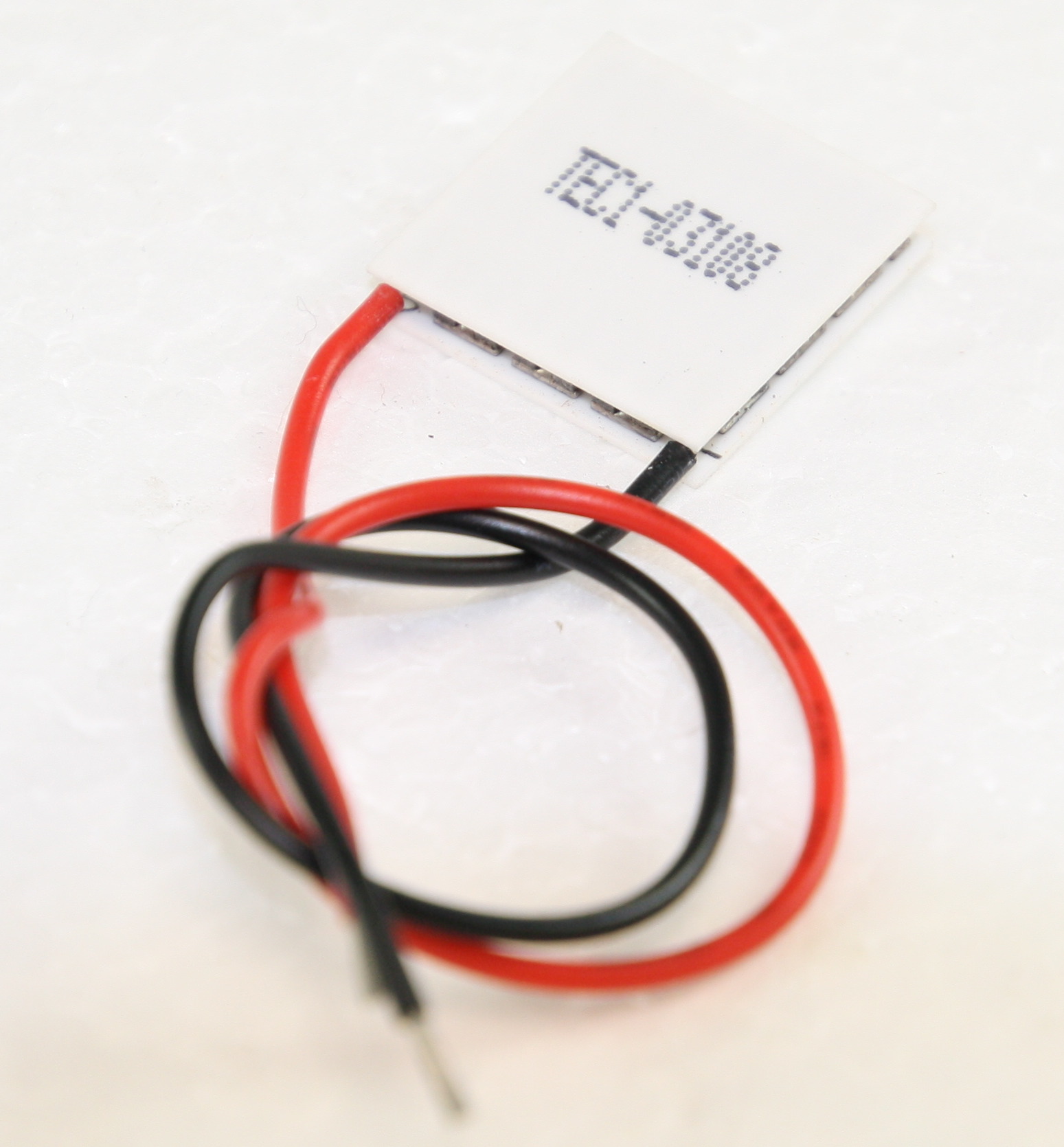

Peltier element, 20x20mm. 3,75VDC 8,5A (17,6W)

ManufacturerSTONECOLD Type of modulePeltier Max. operating voltage3.75V Max. operating current8.5A Body dimensions20x20x3.5mm Max. heat pump capacity17.6W MaterialAl2O3 Cable length150mm Contact materialBiSn Max. temperature difference68°C Resistance 360mΩ Wire insulation materialteflon Operating temperaturemax. 90°C Wire size16AWG
