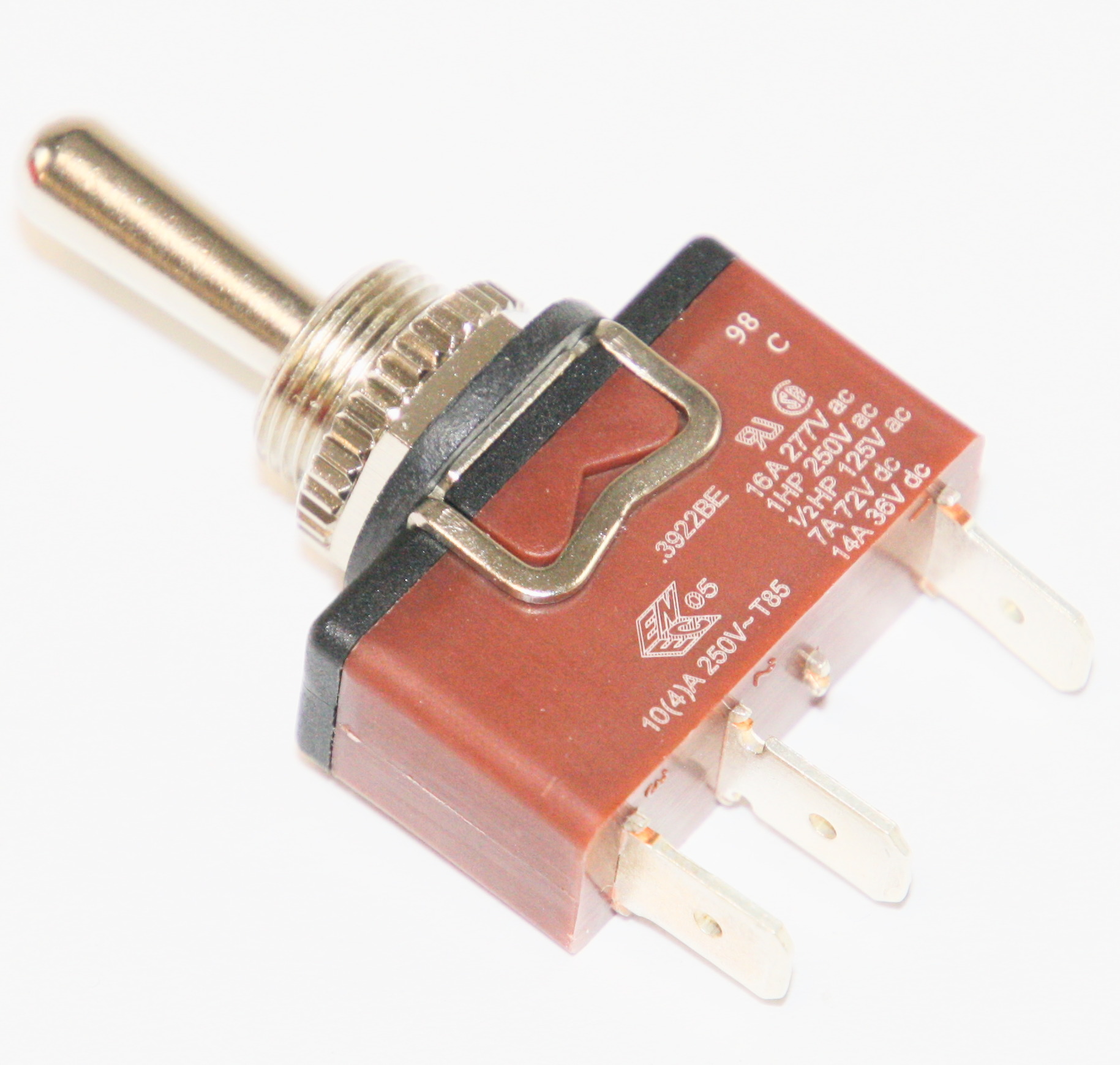

Switch 1-Pol 10A moment (ON)/OFF/(ON) Forseglet

GROUP:E2317Gruppe: E2317ARCOLECTRIC Toggle Switches Series: 3900 With Metal Lever, IP67 Panel Cut-out: Ø10,8mm Inrush Current: 10A/16AFeatures• Single pole leverswitch• IP67 sealed from panelside• For central mounting• 6,3mm solderterminals• Metal lever• Ratet up to 250V/10A (C3900BE: 16A)• Lever protection cap R17-GUARD available  Selection Table    Part Nr.FunctionC3900BESPSTC3910BESPDTC3920BE1xOn-Off-OnC3921BE1xOn-Off-(On)C3922BE1x(On)-Off-(On)R17-10GUARDLever Protection Cap  Technical Specifications    Operating Voltage, Max.:250V ACSwitching Current, Max.:10ASwitching Current C3900BE, Max.:16ASwitching Current at Inductive Load, Max.:4AAmbient Temperature, Max.:85°CInsulation Resistance:>20MOhmContact Resistance(New State, 12V DC/1A):<100mOhmSoldering Conditions (Hand Solder):350°C/6sMaterialsShell:Nylon 6.6Lever:Brass, Nickel-platedCurrent-carrying Part:Cu AlloyContacts:Silver-platedFlammability Class:UL94V2  Panel Cut-out     Wall StrengthCut-out [mm][mm] 4,0Ø 10,8   Approvals 05: 10 (4)A, 250Vac, T85 16A 125/277Vac 7A 72Vdc, 14A 36Vdc 250Vac 1hp, 125Vac 1/2hp 85°C, file E45221, file LR10990
