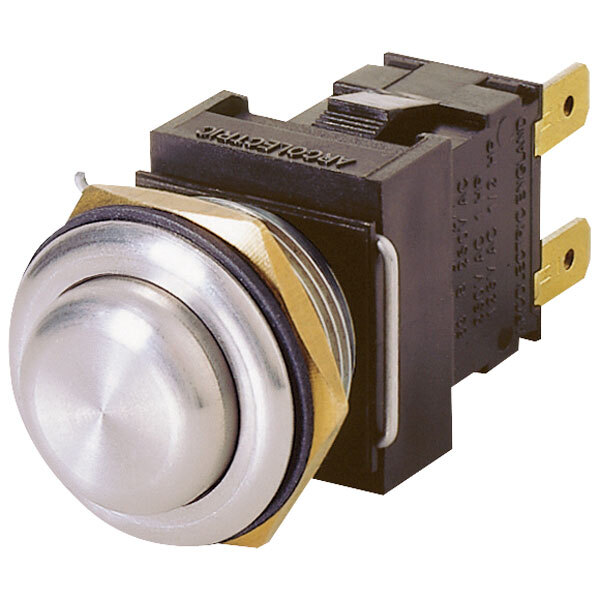

Tryktast 2-pol ON/OFF IP66 vandalsikker moment

Gruppe: E2915ARCOLECTRIC Pushbutton SwitchesSeries: 8300Vandal-Proof, IP 66Panel Cut-out: Ø19,2mmFeatures• H8350RP: vandal-proof latching pushbutton• H8351RP: vandal-proof momentary pushbutton• Protection class IP66Technical SpecificationsOperating Voltage, Max.:250V ACSwitching Current, Max.:16ASwitching Current at Inductive Load, Max.:4AAmbient Temperature, Max.:85°CInsulation Resistance:>20MWContact Resistance(New State, 12V DC/1A):<100mWContact Opening Width:<3mmSoldering Conditions (Hand Solder):350°C/6sMaterialsShell:Nylon 6.6Pushbutton:Stainless SteelCurrent-carrying Parts:Cu AlloyContacts:Silver-platedFlammability Class:UL94V2Approvals 05: 16 (4)A, 250Vac, T85 85°C, file E45221, file LR10990Terms of DeliveryMinimum order quantity: 1 PKU = 1 pieceManufacturer http://www.arcolectric.com

• Kategori: 222
