Panel M. Conn. IP68 Modular RJ45, Cat 5e

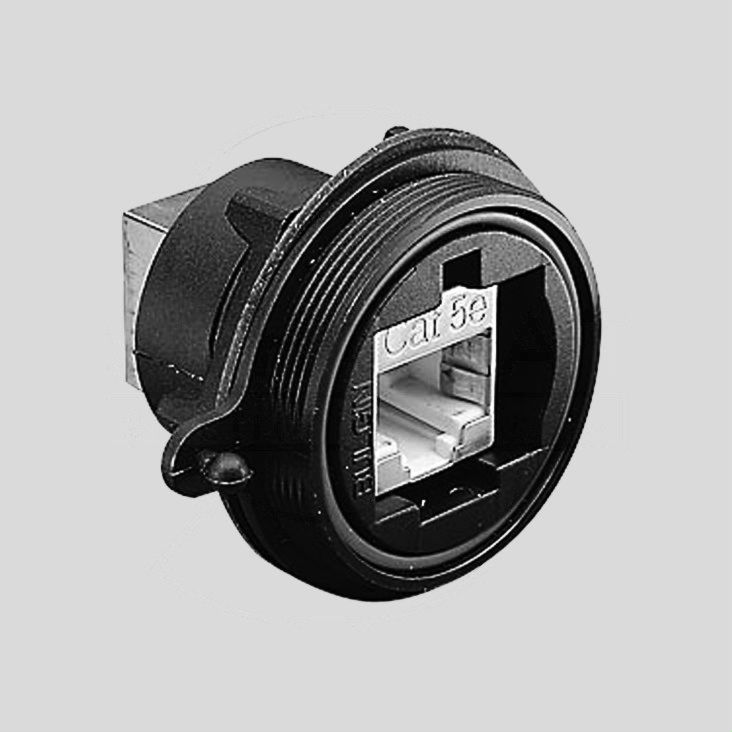

GROUP:F4470Gruppe: F4470BULGIN Ethernet ConnectorsSeries: Ethernet BuccaneerWaterproof IP68Features• Dust and waterproof sealing when mated• Cat.5e compliant: Data rate up to 100MHz• PUR jacket on cable and shielded system: high noise immunity and EMI protection• Cat.5e shielded coupler• Shroud on RJ45: Protection from abouse and mis-mating• Screw coupling: secure, proven locking system• PCB mounted panel connector• IDC termination panel connectorTechnical SpecificationsPole:4Housing Material:PVC, UL94V-0Colour:BlackContact Material:Phosphor BronzeContact Surface:Gold-platedRated Current:1,5ARated Voltage:30V ACTemperature Range:-20...+70°CPX0833Panel Mounting ConnectorFeatures• Cat 5e shielded coupler• Matex with PX0834/B flex connector• Standard RJ45 can be plugged intro rear• Single hole fixing• With panel sealing gasketPX0834/BRe-Wireable Flex ConnectorFeatures• Mates with all panel mounting connectors• With shielded RJ45 plug• For other cable sizes from 3,5 to 8mm diameterPX0837/_M00Patchcords with IP68 Connector and Shielded RJ45 PlugFeatutes• Mates with all panel mounting connectors• Length: 2m, 3m and 5m• S-FTP cable construction• PUR jacket cable• Wiring configuration to 568-B• Exceeds EIA/TIA Cat 5eTerms of DeliveryMinimum order quantity: 1 PKU = 1 pieceManufacturer http://www.bulgin.de
