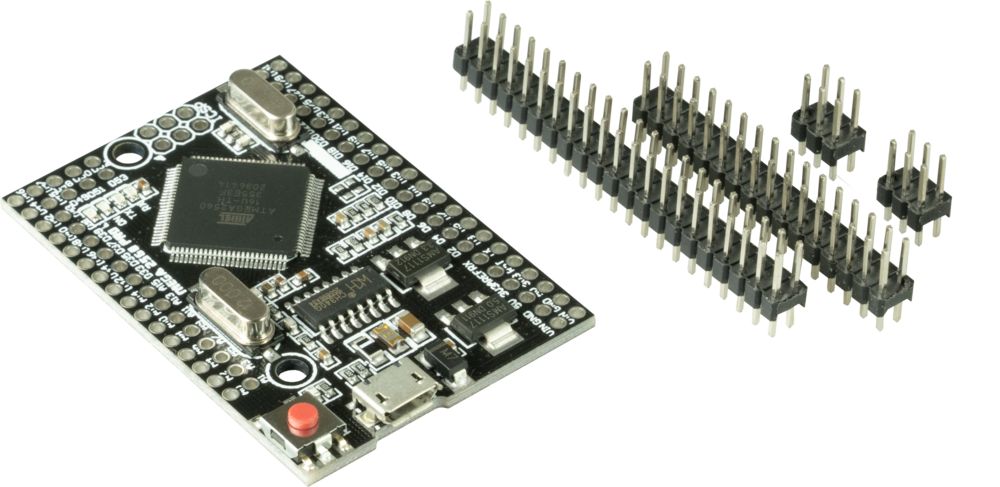

MEGA 2560 PRO

The Mega2560PRO microcontroller board offers you the same performance as a Mega2560. Thanks to its compact design and the non-soldered PINs, the microcontroller board is highly integrable and is also suitable for smaller projects. Despite the smaller dimensions, it still offers the same interfaces like the bigger Mega2560.To transfer the software with Arduino IDE, the microUSB connection is used via the integrated USB-UART adapter CH340G.The power can be supplied via the microUSB connection or via the V IN pin, which allows you to use voltages between 7 and 9 volts on the V IN pin thanks to the integrated voltage converter.MicrocontrollerATmega2560 -16AUStorageFlash 256 KB, SRAM 8 KB, EEPRom 4 KBAmount of Pins:Digital I/O: 54PWM Output: 15Analog Input: 16Compatible withArduino, Raspberry PI, Desktop computer, etc.Special characteristicsmicroUSB Port or Power Pins for power supplyInterface convertermicro USB to UART ( CH340G )Input voltage7 - 9 Volt on VIN5 Volt on microUSB inputLogic level5 VoltOutput current800 mAVoltage regulatorLDO for up to 12 V peakFrequency16 MHz (can reach 12 MHz for data exchange)Dimensions55 x 38 x 10 mmItems ShippedMEGA2560PRO with enclosed Pin headersEAN4250236820279Article No.ARD_MEGA2560PRO
