CAT 7A+ Netværkskabel,S/FTP CU, 22/1 AWG SOLID, 100M

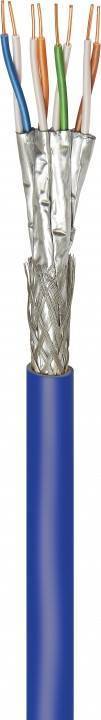

  CAT 7A+ network cable, S/FTP (PiMF), blueCU, AWG 22/1 (solid), LSZH  suitable for applications: up to Class F(A) 1200 MHz Power over Ethernet (PoE/PoE+) analogue/digital signals, video, Voice over IP(VoIP) IEEE 802.3: 10Base-T; 100Base-T; 1000Base-T; 10GBase-T Int. standard ISO/IEC 11801 2nd ed., IEC 61156-5 Euro. standard: EN 50173-1 EN 50288-9-1 FRNC/LSZH = Flame Reterdant Non Corrosive /Low Smoke Zero Halogennon-terminated data-/installationcable for proccessing and installation with LSA connection technology for indoor usingsuitable for applications: up to Class F(A) 1200 MHzdouble shielded twisted-pair LAN cablepairs screening: PIMF (pairs in metal foil) + outer shield: braidingPower over Ethernet (PoE/PoE+) Technical specificationsPerformanceFire class according to DIN EN 13501-6Cca CableCable type round cable Specification CAT 7A+ Shielding class S/FTP (PiMF) AWG22/1 (solid) Cable sheath diameter (approx.)7.8 mm /1,5 mm /0,62 mm Inner conductor material CU (copper) Material cable sheath LSZH Cable length 100 m Meter scalingyes Number of shieldings 2 x Type 1, shieldingfoil (alu) PiMF Type 2, shieldingbraid (copper) LSZH compliantyes Signal transmissionmax. bandwidth 1200 MHz Impedance 100 Ω GeneralConsumption Unit 1 pc. cable reel Outer sheath material LSZH Colorblue Stik Brug 141-736 , 145-006 , 145-005 , 142-348

• Kategori: 222
